Tamarack Solar > Top of Pole Mount for Six Solar Panels - 132 Inch Channel per column
Manufacturer Part Number:
TTP-6

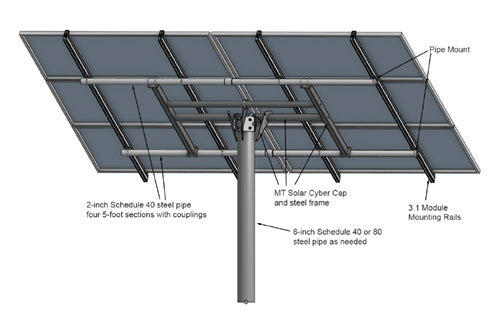

Pole Top (6-inch Schedule 40 pipe) for Six Landscape format 60 cell or 72 cell solar panels. 132 Inch Channel per column (2 columns for TTP-6 top of pole mount, each column is 3 solar panels in landscape format tall).
Supports six solar panels with a total area of 149 square feet or less on a 6-inch Schedule 40 or 80 pole.
Features
- 132-inch rails per column accommodate 6 modules
with widths up to 43 inches
- Mounts on user-supplied 6-inch schedule-40 or
schedule 80 steel pipe
- Module clamps fit frames between 30 to 40 mm
deep*
="" * Deeper frames can be used by adding 50/50+ mounting clamp sold separately 89907
- No complex sizing documents or need to send
module data sheets when ordering
- Heavy-Duty Steel structure and Tamarack 3.1
aluminum module mounting rails
- 10° to 60° tilt angle
- UPS Shippable in 4 or 5 boxes
- Engineered for 120 mph wind speed and 100 psf snow load.
Two TTP-6 versions are available:
- TTP-6 includes 2-inch pipe. Ships in 5 boxes. 220 lbs.
- TTP-6X ships without 2-inch Schedule 80 pipe - user must purchase 21-feet locally. Ships in 4 boxes - 190 lbs.
