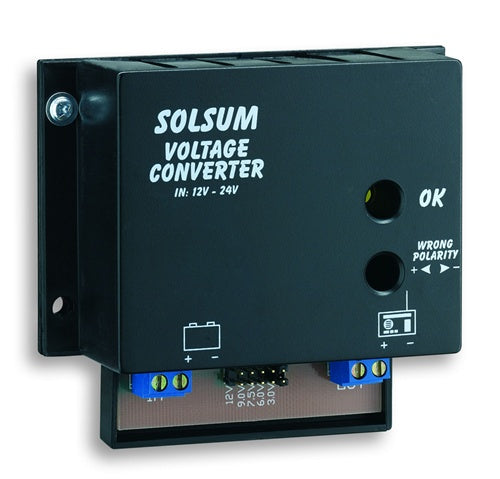

Steca Solsum DC to DC Voltage Converter
In: 12/24 Volts
Out: 3/6/7.5/9/12 Volts
Manufacturer Part Number: VC
When appliances such as cassette recorders or radios which are designed to use dry batteries are connected to 12 V or 24 V batteries, they normally require a lower voltage than that supplied by the system battery.
These appliances can be powered using the Steca Solsum VC adjustable voltage converter. The Solsum VC is also suitable for operating a 12-V appliance with a 24-V battery. The maximum output current for doing so is 1.5 A. When developing this converter, the greatest value was placed in safety and reliability. Five programmed output voltages enable universal usage.
Features:
- Wide input voltage range
- Low own consumption
- Screw terminals allow universal and rapid installation
Detailed Description:
Electronic protection functions
- Overtemperature and overload protection
- Reverse polarity protection
- Short circuit protection
Displays
- 2 multi-coloured LEDs show operating states for operation and polarity
Operation
Certificates
- Compliant with European Standards (CE)
- Manufactured according to ISO 9001 and ISO 14001
