Square D D322NRB > 60 Amp 120/240 VAC Fusible Safety Switch > 3 Pole

by Square D

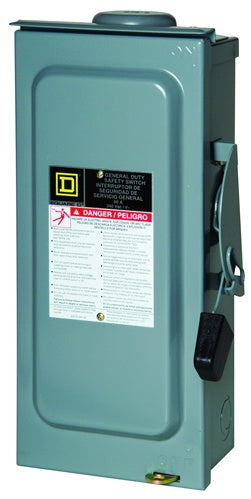

Square D 60 Amp 120/240 VAC Fusible Safety Switch - D322NRB
Sold out
$0.00 - $0.00
$0.00
$0.00 - $0.00
$0.00
SKU Square-D-D322NRB

Square D 60 Amp 120/240 VAC Fusible Safety Switch

Poles: 3
Manufacturer Part Number: D322NRB

Switches are rainproof NEMA 3R with external lockable switch handle and door. Switches serve as service disconnects (non-fusible) and overcurrent devices (fusible) for 120/240 Vac systems. Only the fusible switches include a factory installed neutral assembly. Switches include main lugs and ground screw. 3R switches accept top bolt-on hubs.

Specifications

Model # Poles Rated Current (Amps) Wire Size Dimensions Weight
Fusible
D221NRB 2 30 #14-6 AWG 10 x 7.3 x 3.8 6.0
D222NRB 2 60 #14-2 AWG 14.8 x 6.7 x 5 11.0
D322NRB 3 60 #14-2 AWG 14.8 x 6.7 x 5 15.0
Non-Fusible
DU221RB 2 30 #14-6 AWG 10 x 7.3 x 3.8 6.0
DU222RB 2 60 #14-2 AWG 14.8 x 6.7 x 5 6.0
DU322RB 3 60 #14-2 AWG 14.8 x 6.7 x 5 11.0
