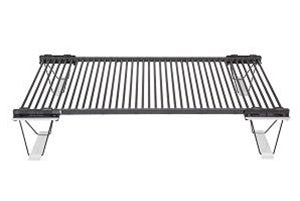

Solyndra 210 Watt 95 Volt Solar Panel, Dark
Manufacturer Part Number: SL-200-210
200 Series Solar Panel Mounts Require No Tools
Light weight and simple installation means fast projects and low cost. The 200 Series requires no tools for installation. The light weight panels install without penetrations or array grounding, making this the easiest and fastest-to-install rooftop solar system yet. Ideal for older or “value engineered” buildings, the low distributed roof load is 2.8 pounds per square foot. Snap together mounts dramatically lower labor costs and shorten project times for large rooftop solar installations. This minimizes business disruption and makes moving the system for future roofing, retrofit or ownership changes a simple process.
Higher Power
Improved light collection makes the 200 Series our most powerful panel yet, especially when combined with a white, “cool roof”. Individual panels are rated as high as 220Wp.
Lower LCOE and Increased ROI
The ease of installation, low balance of system costs and power of the 200 Series provides significantly lower levelized cost of electricity and contributes to high returns on investment for the customer.
Features:
- Maximum System Voltage: Universal design 1,000V (IEC) & 600V (UL) systems
- Dimensions Panel: 2.28 m x 1.09 m x 0.06 m
- Height: 0.36 m to top of panel on mounts
- Mounts: Non-penetrating, steel-reinforced, high performance engineered plastic
- Connectors: 4 Tyco Solarlok; 0.20 m cable
- Series Fuse Rating: 24.4 Amps
- Roof Load: 13.9 kg/m2 (2.8 lb/ft2) panel and mounts
- Panel Weight: 31.8 kg (69 lb) without mounts
- Snow Load Maximum: 1,850 † Pa / 1,200 Pa (38.6 lb/ft2 / 25.1 lb/ft2)
- Hailstone Impact: 25 mm, 7.53 g at 23 m/s per IEC 61646
- Wind Performance: 208 km/h (130 mph) maximum self-ballasting with no attachments
- Operating and Storage Temp: -40˚C to +85˚C
- Normal Operating Cell Temperature: 44˚C at 800 W/m2 , Temp = 20˚C, Wind = 1m/s
- Certifications/Listings: UL1703, IEC 61646, IEC 61730,CE Mark, CEC listing, Protection Class II Application Class A per IEC 61730-2, Fire Class C, MCS/BRE(UK)
- Warranty: 25 year limited power warranty 5 year limited product warranty
