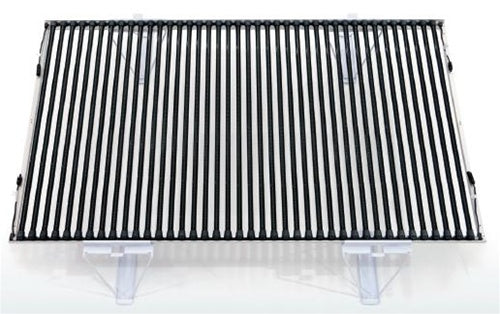

Solyndra 150 Series 173 Watt 89.8 Volt Solar Panel
Manufacturer Part Number: SL-150-173
Solyndra 150 Series:
Solar photovoltaic systems comprised of panels and mounting hardware for low slope, commercial rooftops.
Proprietary cylindrical modules optimize the collection of sunlight and enable Solyndra panels to achieve the highest rooftop coverage without the need for costly mounting hardware or rooftop penetrations. By significantly reducing installation costs and increasing the electricity generated per rooftop, Solyndra delivers electricity at low cost per kilowatt hour.
The 150 Series leverages the higher power of the 200 Series’ cylndrical module in the original 100 Series frame and mounting hardware for applications that require maximum power density or snow loads greater than 1,850 Pa. Solyndra’s panels come with all of the mounts, grounding connectors, lateral clips, and fasteners required to build a standard array.
Features:
-
Maximize roof coverage with no need for tilting and spacing.
Greater coverage means more solar electricity per rooftop per year
-
Fast, simple,
and economical
installation
-
Lightweight and
self-ballasting
No penetrations or
attachments required
Specifications:
Electrical:
Measured at Standard Test Conditions (STC) irradiance of 1000 W/m2, air mass 1.5, and cell temperature 25° C
|
Model Number |
SL-150-165 |
SL-150-173 |
SL-150-182 |
SL-150-191 |
SL-150-200
|
|
PowerRating (Pmp) |
Wp |
165 Wp |
173 Wp |
182 Wp |
191 Wp |
200 Wp |
|
Power Tolerance (%) |
%/Wp |
+/-4 |
+/-4 |
+/-4 |
+/-4 |
+/-4 |
|
Vmp (Voltage at Maximum Power) |
Volts |
86.4 V |
89.8 V |
92.9 V |
95.8 V |
98.3 V |
|
Imp (Current at Maximum Power) |
Amps |
1.91 A |
1.93 A |
1.96 A |
1.99 A |
2.03 A |
|
Voc (Open Circuit Voltage) |
Volts |
121.4 V |
123.5 V |
125.1 V |
126.0 V |
126.3 V |
|
Isc (Short Ciruit Current) |
Amps |
2.29 A |
2.30 A |
2.31 A |
2.33 A |
2.35 A |
|
Temp. Coefficient of Voc |
%/°C |
-.28 |
|
Temp. Coefficient of Isc |
%/°C |
-.02 |
|
Temp. Coefficient of Power |
%/°C |
-.38 |
System:
|
Cell type |
Cylindrical CIGS |
|
Maximum System Voltage |
Universal design: 1000V (IEC) & 600V (UL) systems |
|
Dimensions |
Panel: 1.82 m x 1.08 m x 0.05 m
Height: 0.3 m to top of panel on mounts |
|
Mounts |
Non-penetrating, powder-coated aluminum |
|
Connectors |
4 Tyco Solarlok; 0.20 m cable |
|
Series Fuse Rating |
24.4 Amps |
|
Roof Load |
16 kg/m2 (3.3 lb/ft2) panel and mounts |
|
Panel Weight |
31 kg (68 lb) without mounts |
|
Snow Load Maximum |
2,400 Pa (50.1 lb/ft2) |
|
Hailstone Impact |
25 mm, 7.53 g at 23 m/s per IEC 61646 |
|
Wind Performance |
208 km/h (130 mph) maximum
Self-ballasting with no attachments |
|
Operating and Storage Temp |
-40˚C to +85˚C |
|
Normal Operating Cell Temperature (NOCT) |
41.7˚C at 800 W/m2 , Temp = 20˚C, Wind = 1m/s |
|
Certifications/Listings |
UL1703, IEC 61646, CEC listing
IEC 61730, CE Mark, Fire Class C
Application Class A per IEC 61730-2 |
|
Warranty |
25 year limited power warranty
5 year limited product warranty |
