Solarland USA > Sunwanderer Portable Solar Panel Kit 200W 12V
The Sunwanderer Portable Series is designed to charge 12V Lead-Acid, GEL and AGM style batteries.
Can also be used for vehicles in storage to maintain batteries.

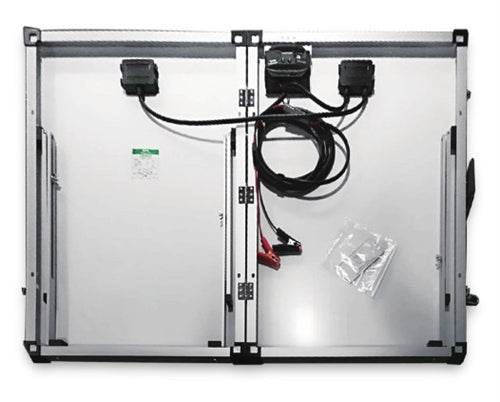

Sunwanderer 200W 12V Portable Solar Kit with included items: charge controller installed on an aluminum board, 16 foot cable with alligator clips, one suitcase bag protector, two leg stands, one handle.
Technical Specifications
|
Rated Power (PM)6
|
200 W
|
|
Number of Panels
|
2 Solar Panels - 100W panels in series
|
|
Operating Voltage (Vmp)
|
17.8V
|
|
Operating Current (Imp)
|
11.43A
|
|
Open Circuit Voltage (Voc)
|
21.3V
|
|
Short Circuit Current (Isc)
|
12.34A
|
|
Power Tolerance
|
± 5%
|
|
Operating Temperature
|
-40°C~+85°C
|
|
Standard Test Conditions
|
Irradiance (E) -1000W/M2, AM 1.5 Spectrum
Panel Temp.(Tc) =25°C
|
|
Dimensions
|
39.57" x 26.38" x 1.38" |
Kit Contents
|
Two 100w multi-crystalline silicon solar panels
|
|
20A Automatic smart solar change controller
|
|
Eight Rubber Corner Protectors
|
|
Fold away adjustable support leg with guide rail - 2 legs
|
|
Carrying handle
|
|
A 16’ cable that extends from the charge controller to the Anderson connector
|
|
A battery clamp adapter which is fitted with the Anderson connector for quick disconnect
with the 16' cable from the controller.
|
|
Carry-on bag
|
