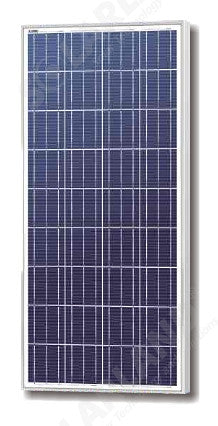

Solarland USA > 150W 12 Volt Solar Panel
Clear Frame,White Backsheet. 35mm Frame.
CSA Certified for Class 1 Div 2. Groups A, B, C & D, T3 Hazardous Environments
|
Model
|
SLP150-12C1D2
|
|
ProductCode
|
150011263
|
|
Series
|
Off Grid- C1D2
|
|
Manufacturer
|
Solarland USA
|
Mechanical
|
Type
|
Polycrystalline
|
|
Dimensions
|
59.06" x 26.57" x 1.38"
|
|
Weight
|
26.68 lbs
|
|
Frame
|
Anodized Aluminum Alloy
|
|
Connector
|
Junction Box
|
Electrical
|
Watts (STC)
|
150 W
|
|
Max Power Voltage (VMPP)
|
18.5 V
|
|
Max Power Current (IMPP)
|
8.11 A
|
|
Open Circuit Voltage (VOC)
|
22.2 V
|
|
Short Circuit Current (ISC)
|
8.68 A
|
|
Max System Voltage (UL)
|
DC 600 V
|
Documentation
Detailed Information
These 150W 12V panels by Solarland have been certified by the CSA
Laborartory to meet UL1703 standards and are for use in Class 1,
Division 2 hazardous environments. These solar modules feature a 35mm frame as well as a Junction Box.
- Certified to UL1703 and cUL1703
- Certified for Hazardous Environments
- C1D2 - Class 1, Division 2
- Nominal 12V DC for standard output.
- Outstanding low-light performance.
- Heavy-duty 50 mm anodized frames.
- High transparent low-iron,tempered glass.
- Rugged design to withstand high wind pressure, hail and snow load.
- Aesthetic appearance.
