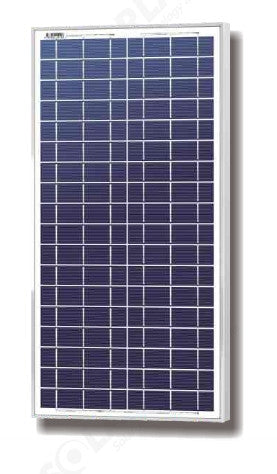

Solarland USA > 30W 12 Volt Solar Panel - Class 1 Div 2
Clear Frame, White Backsheet.
|
Model
|
SLP030-12C1D2
|
|
Product Code
|
030011263
|
|
Series
|
Off Grid - Class 1 Div 2
|
|
Manufacturer
|
Solarland USA
|
Mechanical
|
Type
|
Polycrystalline
|
|
Dimensions
|
26.57" x 14.06" x 1.18"
|
|
Weight
|
6.17 lbs
|
|
Frame
|
Anodized Aluminum Alloy
|
|
Connector
|
Junction Box
|
Electrical
|
Watts (STC)
|
30 W
|
|
Max Power Voltage (VMPP)
|
18.64 V
|
|
Max Power Current (IMPP)
|
1.61 A
|
|
Open Circuit Voltage (VOC)
|
22.18 V
|
|
Short Circuit Current (ISC)
|
1.71 A
|
|
Max System Voltage (UL)
|
DC 1000 V
|
Detailed Information
The Solarland® SLP Series Polycrystalline panels (SLP030-12C1D2) are manufactured using the highest quality components to ensure longer life and excellent performance. These panels are designed for the most rugged off-grid applications including; RV's, cabins, street lighting, water pumping, ventilation fans, navigation lights, traffic signs and signals.
- Nominal 12V DC for standard output.
- Heavy-duty anodized frames.
- High transparent low-iron,tempered glass.
- Rugged design to withstand high wind pressure, hail and snow load.
- Aesthetic appearance.
