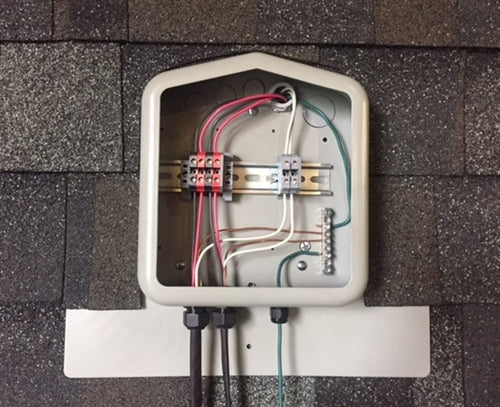

SolaDeck> Roof-Mount Enclosure / Combiner or pass-thru - for Composition/Cedar roof - 5 position ground
SolaDeck manufactures flashed combiner boxes for solar applications.
Internal components are sold separately.
Specifications
|
Model
|
SD-0799-5G
|
|
Series
|
UL 1741 Enclosure Combiner
|
|
Manufacturer
|
SolaDeck
|
|
Flashing Dimensions
|
15.25" x 17.25"
|
|
Height
|
3"
|
|
Cavity
|
255 Cubic inches
|
|
Weight
|
9 lbs
|
|
NEMA Rating
|
Nema 3
|
|
Warranty
|
1 year
|
Product Description
The SolaDeck 0799 enclosures are NEMA 3R and listed to the UL 1741 standard. All SolaDeck models are seamless with a roofing industry approved flashing. SolaDeck parts are all made from 18- gauge galvanized steel with a powder-coated finish (Gray or Black) providing a professional look. The 0799 Soladeck Enclosure is also available in Stainless steel. The overall depth of the enclosure is 3”. Every enclosure has an 8” long 35mm din rail installed for fuse holders, breakers or terminal blocks and include a 5-position ground bar. There are 5 knockouts inside the enclosure (3) - 1/2”, (1) - 3/4” and (1) - 1” for cable or conduit to penetrate the roof deck. The SolaDeck base has dimple locations to enter the enclosure above the roof deck with conduit or gland fittings. These dimple locations can be punched or drilled out. Corner dimples will accept up to 1” fittings or conduit, the 3 center dimples will accept up to ¾” fittings or conduit.
Feature:
- UL50 Type 3R, 11 Edition Electrical equipment enclosures
- CSA C22.2 No. 290 Nema Type 3R
- Conforms to UL 1741 Standard
