SMA JMS-F > SunSpec certified JMS-F Rapid Shutdown MLPE
Add-on Optimizer for 1 PV Module
Rapid shutdown device to work with SunSpec capable inverters.
Specifications
|
Model
|
JMS-F
(119814-00.01)
|
|
Series
|
JMS
|
|
Manufacturer
|
SMA
|
|
Applications
|
Solar Panel Optimizer
|
|
SunSpec certified SMA inverters
|
Sunny Boy US (SBx.x-1SP-US-41)
Sunny Tripower CORE1-US (STP xx-US-41)
|
|
Warranty (contact SMA Service Line)
|
25 years
|
|
Dimensions (L x W x H)
|
3.5" x 3.48" x 0.9" |
|
Weight
|
0.95 lbs |
|
Shipping Method
|
Ground
|
Input
|
Rated DC Input Power
|
600 W
|
|
Maximum Input Voltage (VOC)
|
60 V
|
|
Maximum input voltage
|
10 V
|
|
Maximum Short Circuit Current (ISC)
|
15 A
|
Output
|
Output Power Range
|
0 - 600 W
|
|
Maximum Output Voltage (VOC)
|
60 V
|
|
Communication Type
|
SunSpec Rapid Shutdown
|
|
Rapid Shutdown Compliant (NEC 2017 690.12)
|
Yes
|
|
Maximum system voltage
|
1000 V
|
|
Allowable series string connections
|
6 to 30 JMS-F devices
|
Mechanical
|
Operating Temperature Range
|
−40°C to +85°C (−40°F to +185°F)
|
|
Non-operating temperature range
|
−40°C to +85°C (−40°F to +185°F)
|
|
Cooling
|
Natural convection
|
|
Environmental rating
|
IP68, NEMA 4X
|
|
Shipping Method
|
Ground
|
Cabling
Product Description

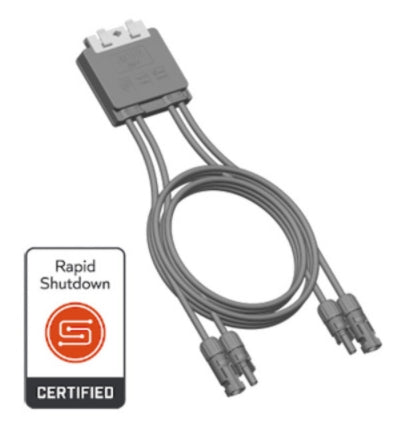

JMS-F SUNSPEC RAPID SHUTDOWN DEVICE
The SunSpec Certified Rapid Shutdown System (model JMS-F), available from SMA, is the most cost-effective and
reliable solution for fulfilling NEC 2017 module level shutdown requirements. The module-level device is certified for
compatibility with the SunSpec communication signal and SMA inverters, making compliance simple and easy. By
using the existing DC lines between the inverter and PV array for power line communications, installation and labor are
significantly reduced. No additional wires or communication equipment is needed. The solution also features up to 50%
fewer internal components vs alternatives, resulting in greater lifetime reliability.
Features
-
Cost-effective
- Simple plug-and-play installation
- No additional components necessary, reducing balance of
system costs
-
Simple and robust
- Power line based communication certified for compatibility with the SunSpec signal for rapid shutdown
- Shuts down PV module whenever SunSpec signal is interrupted
-
Safe and certified
- UL 1741 Rapid Shutdown System Equipment
- NEC 2017 690.12(B)(2) Module Level Shutdown
-
Reduced risk
- Technical support from SMA’s #1 ranked service organization
- Fully SunSpec certified solution when paired with an SMA SunSpec certified inverter
