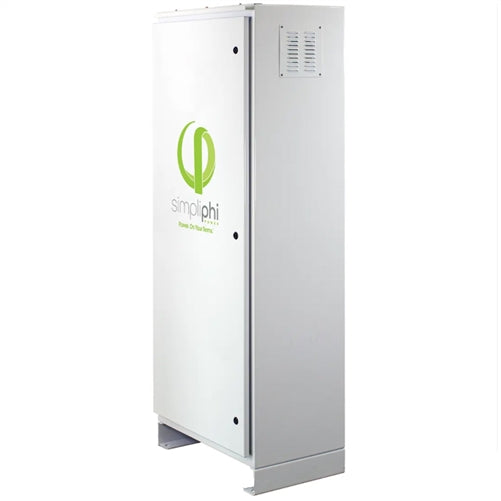

SimpliPhi > 12 Battery Only Storage System - Outdoor Rated
Expand your energy storage by 45.6 kWh with the BOSS.12! This carbon-steel enclosure is a NEMA 3R-rated weather-resistant battery bank housing and wiring solution with built-in shelving. Holding up to 12 PHI batteries, this enclosure can be free-standing or pad mounted.
BOSS:12 - Up to 12 Batteries Enclosure with Shelves - Includes 8' 4/0 Battery Inverter Cables.
Two or
Three Battery Bus Bar Kits sold separately.
|
Model
|
BOSS.12
|
|
Series
|
BOSS - Battery Only Storage System
|
|
Manufacturer
|
SimpliPhi
|
Mechanical
|
Type
|
Lithium Ferro Phosphate (LFP)
|
|
Dimensions
|
29.5" W x 76" (40" w feet) H x 20" D
|
|
Weight
|
428 lbs
|
|
Enclosure Rating
|
NEMA 3R Outdoor Rated
|
|
Mounting
|
Free-standing or Pad-mounted
|
|
Built-In DC Connections
|
2 x 5-point Terminal Busbars,
3/8” lugs, 650 ADC
|
|
Charging Temperature
|
32°F to 120°F (0°C to 49°C)
|
|
Maximum Contained Battery Quantity
|
Twelve (12) AmpliPHI or PHI 3.8, 3.5 or 3.4 batteries (each battery measuring 13.5” W x 15.5” H w/terminals x 8” D)
|
|
Enclosure Warranty Period
|
2 years
|
|
Shipping Method
|
Freight
|
Detailed Information
EXPAND YOUR ENERGY STORAGE - MORE POWER PER HOUR
SimpliPhi Power’s BOSS.12 carbon-steel enclosure is a weather-resistant battery bank housing and wiring solution with built-in shelving. The BOSS consolidates a PHI battery bank paired with any SimpliPhi-compatible Balance of System equipment and can provide additional battery capacity to a SimpliPhi ExprESS or AccESS fully integrated unit. They include terminal blocks for electrical wiring in parallel, busbar-to-terminal block battery cabling, and terminal block to inverter cabling when ordered. The BOSS.12 has been UL 9540 Certified when used with our AccESS 12K with Sol-Ark and with Sol-Ark 12K Inverters.
Deployments: Commercial, Residential, Military, Humanitarian
Features:
- NEMA 3R-rated, weather resistant carbon steel enclosures are easily installed and assembled
- Corrosion-resistant fan prevents PHI batteries from reaching maximum 120°F charging temperature.
- Energized with cobalt-free, safe and non-toxic PHI batteries that outperform alternative solutions.
