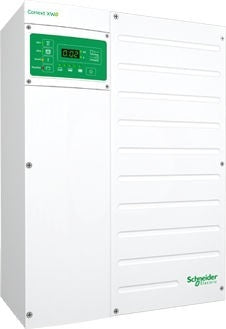

Schneider Electric Conext XW+ 6848 NA > 6.8kW 120/240 VAC Hybrid Inverter/Charger
Manufacturer Part Number: 865-6848-01
Specifications
|
Model
|
XW+ 6848 NA
|
|
Series
|
Conext XW+ NA
|
|
Manufacturer
|
Schneider Electric
|
Part Number
|
865-6848-01
|
Mechanical
|
Type
|
120/240 VAC Hybrid Inverter/Charger
|
|
Operating Temperature Range
|
-25°C to 70°C (-13°F to 158°F)
(power derated above 25°C (77°F)
|
|
Enclosure
|
NEMA Type 1 Indoor
|
|
Dimensions (W x H x D)
|
23" x 16" x 9"
|
|
Weight
|
118 lbs
|
|
Shipping Method
|
165 lbs
|
Inverter AC output
Output power (continuous) at 25°C
|
6800 W
|
Overload 30 min / 60 sec at 25°C
|
8500 W / 12000 W
|
Output power (continuous) at 40°C
|
6000 W
|
|
Maximum output current 60 seconds (rms)
|
102 A (120 V); 52 A (240 V)
|
Output frequency (selectable)
|
50 / 60 Hz
|
|
Output voltage
|
L-N: 120 V +/- 3%; L-L: 240 V +/- 3%
|
|
Total harmonic distortion (THD) at rated power
|
< 5%
|
|
Idle consumption search mode
|
< 8 W
|
|
Input DC voltage range
|
42 to 60 V (48 V Nominal)
|
Maximum input DC current
|
180 A
|
Charger DC Output
Maximum output charge current
|
140 A
|
Output voltage range
|
40 - 64 V (48 V Nominal)
|
|
Charge control
|
Three stage, two stage, boost, custom
|
|
Charge temperature compensation
|
Battery temperature sensor included
|
Power factor corrected charging
|
0.98
|
|
Compatible battery types
|
Flooded (default), Gel, AGM, LiON, custom*
|
|
Batter bank range (scaled to PV array size)
|
440 - 10000 Ah
|
AC Input
AC 1 (grid) input current (selectable limit)
|
3 - 60 A (60 A default)
|
AC 2 (generator) input current (selectable limit)
|
3 - 60 A (60 A default)
|
|
Automatic transfer relay rating / typical transfer time
|
60 A / 8 ms
|
|
AC input voltage limits (bypass/charge mode)
|
L-N: 78 - 140 V (120 V nominal)
L-L: 160 - 270 V (240 V nominal)
|
AC input frequency range (bypass/charge mode)
|
55 - 65 Hz (default); 52 - 68 Hz (allowable)
|
AC Grid-Tie Output
Grid sell current range on AC1(selectable limit)
|
0 to 48 A (120 V) / 0 to 27 A (240 V)
|
Grid sell voltage range on AC1
(auto adjusts entering sell mode)
|
L-N:105.5 to 132 +/- 1.5 V
L-L: 211 to 264 +/- 3.0 V
|
Grid sell frequency range on AC1
(auto adjust entering sell mode)
|
59.4 to 60.4 +/- 0.05 Hz
|
Detailed Description:
General
Schneider Electric brings the next generation of inverter/charger to market, with the XW Hybrid Inverter/Charger, the heart of the XW System. The XW Hybrid Inverter/Charger (XW) is a true sine wave, 230 VAC, split-phase, inverter/charger that incorporates a DC to AC inverter, a battery charger, and an AC auto-transfer switch. It is the foundation for battery- based residential and commercial applications up to 18 kilowatts (kW). Capable of being grid-interactive or grid-independent, the XW can operate with generators and renewable energy sources to provide full time or backup power.
XW Charge Controller
Schneider Electric expects the system designer to use the XW Charge Controller with their inverters. Their sizing tools assume the XW Charge Controller. Most importantly, Schneider Electric handles the Ground Fault Protection (required by National Electric Code 2008 in all systems) in the charge controller. If you do not use the Schneider Electric XW Charge Controller then the GFP must be handled in a different way.
