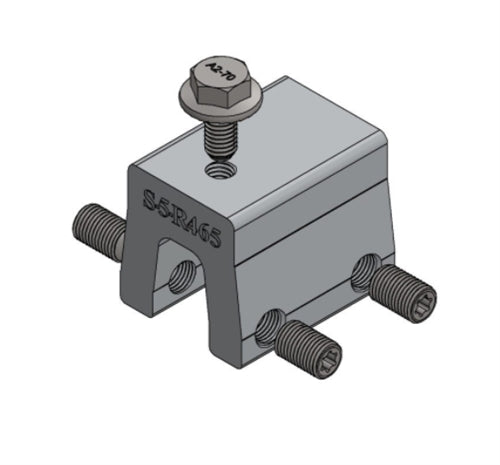

S-5! > Standing Seam Clamp Two Set Screws
Manufacturer Part Number:S-5-R465 Clamp
Minimum order quantity of 30 Units.
Standing Seam Clamp Two Set Screws, 0.74" Jaw Width
Unique Opposing Setscrew Clamp Design Engages the Ribs Beneath the Top Bulb, Maximizing the Holding Strength on Rib Roofs.
The S-5-R465 was created specifically to fit the
Zambelli
RIB-ROOF 465, McElroy Metal’s Mirage II, Rib Roof Metal Systems’ Rib Roof, and similar roof profiles
.
The S-5-R465 replaces the S-5-R, proving to have more than three times the holding strength. The clamps are uniquely designed with opposing setscrews to maximize holding strength. The patented round-point setscrews do not penetrate the weathering membrane of the roof, nor damage the protective Galvalume coatings of steel panels. They will not cause scoring which can lead to roof material fracture or premature corrosion, including rust, thereby voiding the roof manufacturer's warranty.
Product Specifications
- Unique design with opposing setscrews that engage the ribs beneath the top bulb, maximizing published holding strength
-
Heavy-duty applications, such as snow retention
- Four T-30 Torx round-point setscrews (Torx bit tip provided)
- One M8 bolt included
