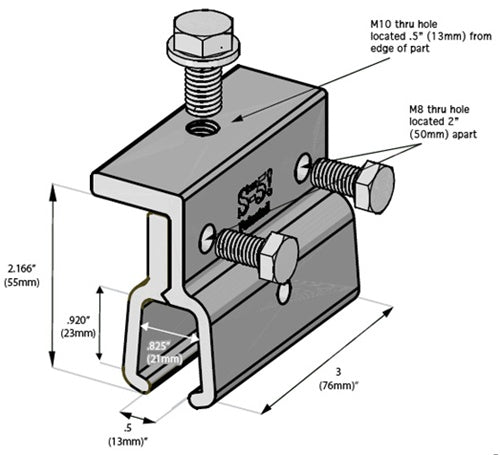

S-5! Clamp, Size K, fits KlipRib or roofs with lapped rib
Manufacturer Part Number: S-5-K Grip
The S-5-K clamp was designed to address the unique needs of very distinctive profiles.
Detailed Description:
The S-5-K clamp is designed for use on Klip-Rib, Klip-Lok, and roofing types with similar profiles. It is most often placed on the lapped rib, but with a supplemental screw fastener can also be used at intermediate ribs.
This clamp can be installed with or without a supplemental sheet metal screw, providing truly unsurpassed holding power. When using the clamp for snow retention, the assembly should be specifically engineered to each individual project for maximum protection. All included hardware is stainless steel.
Installation is as simple as mating the clamp halves and starting the M8 bolts. Position clamp on seam and tighten the M8 bolt with a ratchet or electric tool while securing the clamp with a locking C-clamp.
The S-5-K clamp has been tested for load-to-failure results on a variety of relevant profiles from leading manufacturers of panels.
