Quick Mount PV MILL QBase Universal Tile Mount - Box of 12

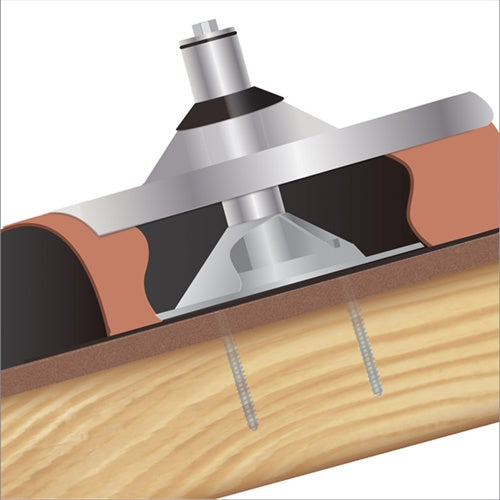

The double-flashed QBase Universal Tile Mount uses the QBase foundation to make an exceptionally strong mount. The primary flashing at the roof deck forms a waterproof shield isolating all penetrating fasteners from corrosive water intrusion. The top flashing is malleable, so it works equally well for curved and flat tile roofs. Both flashings feature a spun aluminum cone, with no seams to fail in extreme climates. Ideal for both retrofit and new roof installations.
|
Model
|
QMUTM-A
|
|
Series
|
QBase Universal Tile Mount
|
|
Finish
|
Mill
|
|
Quantity
|
12
|
|
Manufacturer
|
QuickMount PV
|
- Patented waterproofing technology
- All-aluminum, full-sized flashing
- All exposed hardware is stainless steel
- Installs faster than any other flashed solar PV mounting
- Works with all standard racking systems
- Made in USA
Quick Mount PV QMUTM A Includes:
- Cast aluminum QBase
- Aluminum post, 1-1/4" x 6-1/2"
- 9" x 9" spun aluminum cone subflashing
- 18" x 18" spun aluminum cone malleable flashing
- Two zinc-coated steel lag bolts, 5/16" x 3"
- Stainless steel machine bolt, 5/16" x 1"
- EPDM post collar/counter flash
- EPDM-bonded stainless steel sealing washer, 5/16" x 1-1/4"
- Stainless steel fender washer
- Stainless steel split lock washer, 5/16"
- Grade-8 machine bolt, 5/16" x 3/4"
