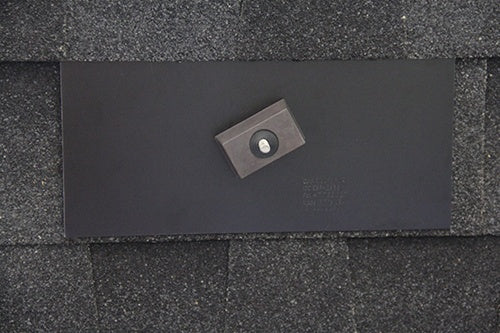

Quick Mount PV > Classic Composition Mount - Black / Bronze - Box of 12
Quick Mount PV’s best selling product, the Classic Composition Mount is the easiest, fastest, most universally code-compliant watertight mount available for composition roofs. The Classic Composition Mount is backed by solid engineering and is certified by the ICC-ES (ICC-ESR-2835). The patented QBlock elevated seal raises the waterproofing point 0.75 inches/1.9 cm off the roof surface, providing unsurpassed protection against leaks.
|
Model
|
QMSC-B
|
|
Series
|
Classic Composition Mount
|
|
Finish
|
Black / Bronze Anodized
|
|
Quantity
|
12
|
|
Manufacturer
|
QuickMount PV
|
- Patented waterproofing technology
- All-aluminum, full-sized flashing
- All exposed hardware is stainless steel
- Installs faster than any other flashed solar PV mounting
- Works with all standard racking systems
- Made in USA
There’s no need for trimming shingles to force a fit. Drill one pilot hole into the rafter, backfill it with appropriate sealant, slide the Quick Mount flashing beneath the shingle in the course above, drive the bolt home, and it’s done.
The 12" x 12" Classic Composition Mount flashing is designed to fit within a standard 5 to 5.5-inch course and the exposed course should be no greater than 5.75 inches. If the exposure is greater than this, use the Shake Mount as an alternative. There’s no shingle cutting and no shingle distortion caused by trying to force a fit – just a permanent, watertight mount every time.
