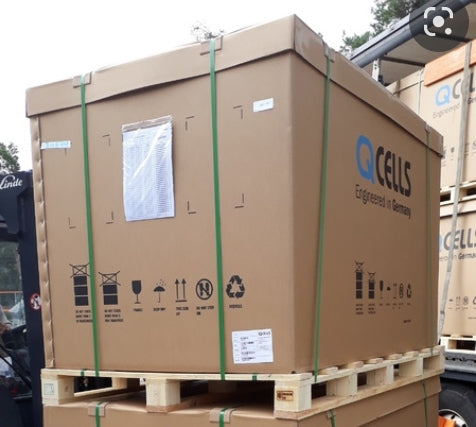

Q Cells > 400 Watt Mono Solar Panel - All Black - Pallet Quantity - 32 Solar Panels
132 Half-cut
Cell, 32mm Black Anodized Aluminum Frame, Black Backsheet
|
Model
|
Q.PEAK DUO BLK ML-G10+ 400
|
|
Series
|
Q.PEAK DUO BLK ML-G10+
|
|
Manufacturer
|
Q Cells
|
|
Pallet Quantity
|
32 Solar Panels
|
Mechanical
|
Type
|
Monocrystalline
|
|
Dimensions
|
74" x 41.1" x 1.26"
|
|
Weight
|
48.5 lbs
|
|
Frame
|
Anodized aluminum
|
|
Connector
|
Junction Box w/ Multi-Contact MC4
|
Electrical
|
Watts (STC)
|
400 W
|
|
Max Power Voltage (VMPP)
|
37.13 V
|
|
Max Power Current (IMPP)
|
10.77 A
|
|
Open Circuit Voltage (VOC)
|
45.30 V
|
|
Short Circuit Current (ISC)
|
11.14 A
|
|
Max System Voltage (UL)
|
DC 1000 V
|
Warranty
- 25 Years Product
- 25 Years linear performance
Detailed Information
-
BREAKING THE 20 % EFFICIENCY BARRIER
Q.ANTUM DUO Z Technology with zero gap cell layout boosts module efficiency up to 20.9 %.
-
THE MOST THOROUGH TESTING PROGRAME IN THE INDUSTRY
Q CELLS is the first solar module manufacturer to pass the most comprehensive quality programe in the industry: The new “Quality Controlled PV” of the independent certification institute TÜV Rheinland.
-
INNOVATIVE ALL-WEATHER TECHNOLOGY
Optimal yields, whatever the weather with excellent low-light and temperature behavior.
-
ENDURING HIGH PERFORMANCE
Long-term yield security with Anti LID and Anti PID Technology, Hot-Spot Protect and Traceable Quality Tra.Q.
-
EXTREME WEATHER RATING
High-tech aluminum alloy frame, certified for
high snow (5400 Pa) and wind loads (4000 Pa).
-
A RELIABLE INVESTMENT
Inclusive 25-year product warranty and 25-year
linear performance warranty.
