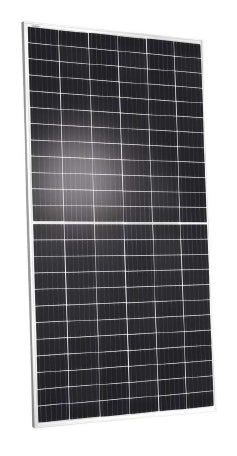

Q Cells Q.PEAK DUO L-G6.2 420 > 420 Watt Q.PEAK DUO L-G6.2 Mono Solar Panel

by Q Cells
Sold out
Original price $0.00 - Original price $0.00
Original price
$0.00
$0.00 - $0.00
Current price $0.00
SKU Q-Cells-Q.PEAK-DUO-L-G6.2-420

Q Cells > 420 Watt Q.PEAK DUO L-G6.2 Mono Solar Panel

35mm Clear Anodized Aluminum Frame, White Backsheet, 144 half-cut cell.

Model Q.PEAK DUO L-G6.2 420 Watt
Series Q.PEAK DUO L-G6.2
Manufacturer Q Cells

Mechanical

Type Monocrystalline
Dimensions 81.9" x 40.6" x 1.38"
Weight 55.1 lbs
Frame Anodized aluminum
Connector Junction Box w/ Multi-Contact MC4

Electrical

Watts (STC) 420 W
Max Power Voltage (VMPP) 40.89 V
Max Power Current (IMPP) 10.27 A
Open Circuit Voltage (VOC) 48.88 V
Short Circuit Current (ISC) 10.79 A
Max System Voltage (UL) DC 1000 V

Warranty

  • 12 Years Product
  • 25 Years linear performance

Detailed Information

  • LOW ELECTRICITY GENERATION COSTS
    Higher yield per surface area and lower BOS costs thanks to higher power classes and an efficiency rate of up to 19.6%.
  • INNOVATIVE ALL-WEATHER TECHNOLOGY
    Optimal yields, whatever the weather with excellent low-light and temperature behavior.
  • ENDURING HIGH PERFORMANCE
    Long-term yield security with Anti LID and Anti PID Technology, Hot-Spot Protect and Traceable Quality Tra.Q.
  • EXTREME WEATHER RATING
    High-tech aluminum alloy frame, certified for high snow (5400 Pa) and wind loads (2400 Pa).
  • A RELIABLE INVESTMENT
    Inclusive 12-year product warranty and 25-year linear performance guarantee

Also known as:

Q Cell
Q-Cell
QCell
Q-Cells
Q-Cells
Hanwha

Documentation

Data Sheet Q Cells Q.PEAK DUO L-G6.2 405-425 Watt
Warranty Q Cells Solar Panels
