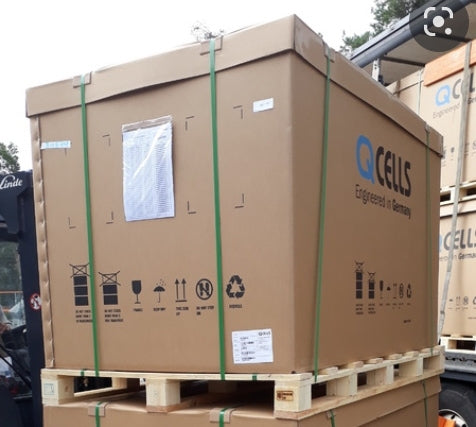

Q Cells > Q.Peak Duo 315 Watt Mono Solar Panel - All Black - Pallet Quantity - 32 Solar Panels
Black Frame (32mm), Black Backsheet - Half-Cut Cell Solar Panel -
120 Cell
|
Model
|
Q.PEAK DUO BLK-G5 315
|
|
Series
|
Q.PEAK DUO BLK-G5
|
|
Manufacturer
|
Hanwha Q CELLS
|
|
Pallet Quantity
|
32 Solar Panels
|
Mechanical
|
Type
|
Monocrystalline
|
|
Dimensions
|
66.3" x 39.4" x 1.26"
|
|
Weight
|
41.25 lbs
|
|
Frame
|
Black anodized aluminum
|
|
Connector
|
Junction Box w/ Multi-Contact MC4
|
Electrical
|
Watts (STC)
|
315 W
|
|
Max Power Voltage (VMPP)
|
33.46 V
|
|
Max Power Current (IMPP)
|
9.41 A
|
|
Open Circuit Voltage (VOC)
|
40.29 V
|
|
Short Circuit Current (ISC)
|
9.89 A
|
|
Max System Voltage (UL)
|
DC 1000 V
|
Warranty
- 12 Years Product
- 25 Years linear performance
Detailed Information
The new Q.PEAK DUO BLK-G5 solar module from Q CELLS impresses with its outstanding visual appearance and particularly high performance on a small surface thanks to the innovative Q.ANTUM DUO Technology. Q.ANTUM's world-record-holding cell concept has now been combined with state-of-the-art circuitry half cells and a six-busbar design, thus achieving outstanding performance under real conditions — both with low-intensity solar radiation as well as on hot, clear summer days.
-
Q.ANTUM TECHNOLOGY: LOW LEVELIZED COST OF ELECTRICITY
Higher yield per surface area, lower BOS costs, higher power classes, and an efficiency rate of up to 19.3 %.
-
INNOVATIVE ALL-WEATHER TECHNOLOGY
Optimal yields, whatever the weather with excellent low-light and temperature behavior.
-
ENDURING HIGH PERFORMANCE
Long-term yield security with Anti LID and Anti PID Technology, Hot-Spot Protect and Traceable Quality Tra.Q.
-
EXTREME WEATHER RATING
High-tech aluminum alloy frame, certified for high snow (5400 Pa) and wind loads (4000 Pa) regarding IEC.
-
A RELIABLE INVESTMENT
Inclusive 12-year product warranty and 25-year linear performance guarantee
-
STATE OF THE ART MODULE TECHNOLOGY
Q.ANTUM DUO combines cutting edge cell separation and innovative wiring with Q.ANTUM Technology
