Primus Windpower 2-ARAC-D-20 (160W) > 20 Amp Digital Wind Control Panel - For AIR 40 and AIR Silent X 12V
2-ARAC-D-20 - 20 Amp (160W) For For AIR 40 and AIR Silent X- 12V models.
Primus Wind Power now offers a digital wind control panel for use with all AIR Wind Turbines. The panel is easy to install and will result in a professional operator station enhancing the beauty and value of the Hybrid system installation. WCP-D includes a full indoor only, black plastic enclosure.
The WCP-D controls and monitors the wind turbine. It is equipped with a power On/Off circuit breaker, digital meter and a Stop/Run switch (for direct control of the turbine). The digital meter (equipped with a 50 amp shunt) provides critical operational information; real time battery voltage, current in amps, power in Watts and accumulated energy in W/hours (re-settable). A clearly marked rear terminal block is provided for easy interconnect of the two turbine wires and two battery power wires. Panel is fully calibrated and ready for installation.

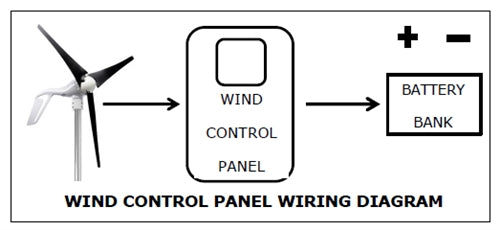

The WCP - D helps to reduce installation costs and makes wiring a snap with just 4 wires to connect. The panel is available in 5 models specific to the AIR Wind Turbine – voltage and type.
Dimensions are: L - 6.5 inch / W - 4.25 inch / D - 2.5 inches.
Also known as:
WCP-D
