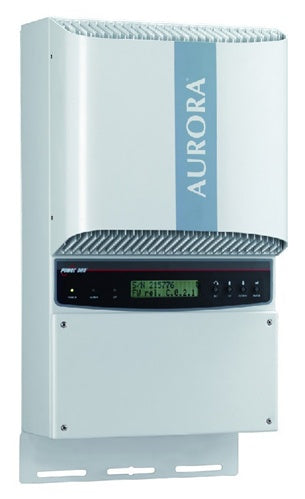

Power-One PVI 3.6 3000 Watt 208/240/277 Volt Inverter
Transformerless
Manufacturer Part Number: PVI-3.0-OUTD
The most common residential inverter is the ideal size for an average-sized family home. This single-phase string inverter complements the typical number of rooftop solar panels, allowing home-owners to get the most efficient energy harvesting for the size of the property.
Features:
Dual input section to process two strings with independent MPPT
High speed MPPT for real time power tracking and improved energy harvesting
Transformerless operation for highest efficiency: up to 96,8% (Euro 96%)
Reverse polarity protection minimizes chance of damage due to miswiring
True Sine Wave Output
Anti-islanding Protection
LCD Display on the front to monitor the main parameters
Integrated DC switch in compliance with VDE 0100-712 (Germany) and CEI 64-8 V4 (Italy)
Standard DC Multi-Contact terminals (model MC4), includes an integrated DC switch
(PVI-X.X-OUTD-S)
Specifications
MODEL
PVI-3.0-OUTD
PVI-3.6-OUTD
PVI-4.2-OUTD
INPUT PARAMETERS
Nominal DC Power [kW]
3,12
3,75
4,375
Max. Recommended DC Power [kW]
3,5
4,15
4,82
Operating Input Voltage Range [V]
0,7xVstart - 580 (360 nominal)
Full Power MPPT input voltage range (symmetrical load) [V]
156-530
120-530
140-530
Absolute Max. Input Voltage [V]
600
Activation voltage "Vstart" [V]
200 nominal (adjustable within the range 120Vdc-350Vdc, independently/each input)
This rugged outdoor inverter has been designed as a completely sealed unit to withstand the harshest environmental conditions. One of the key benefits of this inverter is the dual input section to process two strings with independent MPPT especially useful for rooftop installations with two different orientations (ie East and West). The high speed MPPT offers real-time power tracking and improved energy harvesting. The transformerless operation gives the highest efficiency of up to 96.8%. The wide input voltage range makes the inverter suitable to low power installations with reduced string size.
