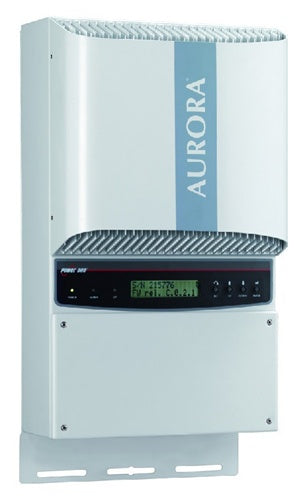

Power-One PVI 3.0 3000 Watt 208/240/277 Volt Inverter
Transformerless
Manufacturer Part Number: PVI-3.0-OUTD-US
The most common residential inverter is the ideal size for an average-sized family home. This single-phase string inverter complements the typical number of rooftop solar panels, allowing home-owners to get the most efficient energy harvesting for the size of the property.
Features:
-
Dual input section to process two strings with independent MPPT
-
High speed MPPT for real time power tracking and improved energy harvesting
-
Transformerless operation for highest efficiency: up to 96,8% (Euro 96%)
-
Reverse polarity protection minimizes chance of damage due to miswiring
-
True Sine Wave Output
-
Anti-islanding Protection
-
LCD Display on the front to monitor the main parameters
-
Integrated DC switch in compliance with VDE 0100-712 (Germany) and CEI 64-8 V4 (Italy)
-
Standard DC Multi-Contact terminals (model MC4), includes an integrated DC switch
(PVI-X.X-OUTD-S)
Specifications
|
MODEL
|
PVI-3.0-OUTD
|
PVI-3.6-OUTD
|
PVI-4.2-OUTD
|
|
INPUT PARAMETERS
|
|
Nominal DC Power [kW]
|
3,12
|
3,75
|
4,375
|
|
Max. Recommended DC Power [kW]
|
3,5
|
4,15
|
4,82
|
|
Operating Input Voltage Range [V]
|
0,7xVstart - 580 (360 nominal)
|
|
Full Power MPPT input voltage range (symmetrical load) [V]
|
156-530
|
120-530
|
140-530
|
|
Absolute Max. Input Voltage [V]
|
600
|
|
Activation voltage "Vstart" [V]
|
200 nominal (adjustable within the range 120Vdc-350Vdc, independently/each input)
|
|
No of independent MPPT trackers
|
2
|
|
Max. Input Power, each MPPT [kW]
|
2
|
3
|
|
No. of DC Inputs
|
2
1/ MPPT
|
3
2 / MPPT1
1 / MPPT2
|
|
Max. DC Current, each MPPT [A]
|
10
|
16
|
|
DC Connection
|
4 (2 pos, 2 neg)
|
6 (3 pos, 3 neg)
|
|
MultiContact
Ø 4mm (male - positive input + female - negative input)
|
|
Mating cable connector included
|
|
Conductor cross section: 4-6mmq/AWG12-10 - Cable Ø w/insulator: 3-6mm
|
|
INPUT PROTECTION
|
|
Reverse polarity protection
|
Yes
|
|
Fuse rating, each input (-FS suffix versions only)
|
NA
|
NA
|
NA
|
|
Thermally Protected DC side varistor
|
4
2 / MPPT
|
|
PV array Insulation Control
|
according to VDE0126-1-1
|
|
DC Switch (-S/-FS suffix versions only)
|
Integrated (Max. Voltage Rating : 600Vdc / Max Current Rating: 25A)
|
|
OUTPUT PARAMETERS
|
|
Nominal AC Power [up to 50°C, kW]
|
3
|
3.6
|
4.2
|
|
Max. AC Power [kW]
|
3.3
|
3.96
|
4.6
|
|
AC Grid Connection
|
single phase ( Live, Neutral, PE )
|
|
Nominal AC Voltage Range [V]
|
200-245 (230 nominal)
|
|
Maximum AC Voltage Range [V]
|
180-264 (may vary to comply with local regulation)
|
|
Nominal AC Frequency [Hz]
|
50
|
|
Max. AC Line Current [A]
|
14,5
|
17,2
|
20
|
|
AC Connection
|
Screw terminal block
|
|
Conductor cross section: Solid 0,5-16mmq / Stranded: 0,5-10mmq / AWG20-6
|
|
Cable Gland: M32 - Cable Ø: 13-21mm
|
|
Line Power Factor
|
1
|
|
AC Current Distortion [THD%]
|
<3,5% at rated power with sine wave voltage
|
|
OUTPUT PROTECTION
|
|
AC side varistors
|
2 ( Live - Neutral / Live - PE )
|
|
Ground fault protection (AC + DC leakage current)
|
according to VDE0126-1-1
|
|
CONVERSION EFFICIENCY
|
|
Max. Efficiency
|
96,80%
|
|
Euro Efficiency
|
96%
|
Detailed Description:
This rugged outdoor inverter has been designed as a completely sealed unit to withstand the harshest environmental conditions. One of the key benefits of this inverter is the dual input section to process two strings with independent MPPT especially useful for rooftop installations with two different orientations (ie East and West). The high speed MPPT offers real-time power tracking and improved energy harvesting. The transformerless operation gives the highest efficiency of up to 96.8%. The wide input voltage range makes the inverter suitable to low power installations with reduced string size.
