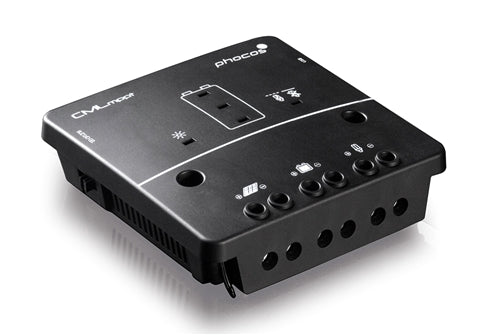

Phocos 10 Amp 12/24 Volt MPPT Charge Controller
Manufacturer Part Number: CML-MPPT-50/10
The CMLmppt charge controller is equipped with a
number of outstanding features such as charge
status indication, low-voltage disconnect alarm
and safety functions.
Specifications
|
Type
|
CML-MPPT-50/10
|
|
System voltage
|
12 / 24V
|
|
Max. charge current
|
10 A
|
|
Float charge
|
13.8 / 27.6V
|
|
Boost charge
|
14.4 / 28.4V
Activation: battery voltage <12.1 / 24.2V
|
|
Max. panel voltage (Overvoltage protection by varistor)
|
30V (12 V systems)
50V (24 V systems)
|
|
Idle self consumption
|
< 10 mA
|
|
Grounding
|
Positive Ground
|
|
Ambient temperature
|
-40 to +50 °C
|
|
Max. elevation
|
13,000 ft (4,000 m) above sea level
|
|
Battery type
|
Lead acid (GEL, AGM, flooded)
|
|
Wire cross section
|
Max. 6 AWG (16.0 mm
2)
|
|
Weight
|
11.2 oz (320 g)
|
|
Dimensions (W xH x D)
|
5" x 5" x 1.5"
|
|
Type of protection
|
IP20
|
Documentation
Product Description
The CMLmppt charge controller is equipped with a
number of outstanding features such as charge
status indication, low-voltage disconnect alarm
and safety functions.
The use of MPPT technology can contribute to a
considerable boost in energy output from PV
modules (up to 30% more), especially in cooler
climate areas where PV module voltages tend to be
higher.
The built-in USB charging port allows for charging
mobile devices from a larger solar home system.
Features
Clear Communication
- LED status indication of the battery’s charge level
- Acoustic alarm sounds to signal low voltage disconnect
Extends Battery Lifespan
- 3-stage I/U curve sweep algorithm increases battery lifespan
- Temperature-compensated charging for sealed or vented lead acid batteries
Versatile
- Works in 12 or 24V systems (automatic battery voltage detection)
- Available USB charging port allows charging portable devices from PV system
