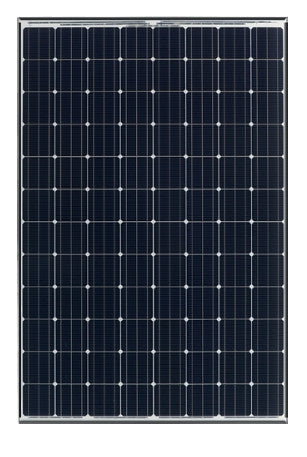

Panasonic VBHN330SA16 > 330 Watt Mono Solar Panel - 35mm Black Frame

Name: Panasonic VBHN330SA16 > 330 Watt Mono Solar Panel - 35mm Black Frame
Brand: Panasonic
SKU: Panasonic-VBHN330SA16
Availability: OutOfStock

by Panasonic

Sold out

$0.00 - $0.00

$0.00

$0.00 - $0.00

$0.00

SKU Panasonic-VBHN330SA16

Quantity

Description
Datasheet

Description

Panasonic > 330 Watt Mono Solar Panel - Black Frame

96 Cell, 35mm Black Frame, White Backsheet

Model	VBHN330SA16
Series	Photovoltaic Module HIT®
Manufacturer	Panasonic

Mechanical

Type	Mono
Dimensions	62.6" x 41.5" x 1.4"
Weight	40.2 lbs
Frame	Black Anodized
Connector	MC4

Electrical

Watts (STC)	330 W
Max Power Voltage (VMPP)	58.0 V
Max Power Current (IMPP)	5.70 A
Open Circuit Voltage (VOC)	69.7 V
Short Circuit Current (ISC)	6.07 A
Max System Voltage (UL)	DC 600 V

Warranty

10 Year product warranty, 90% output
20 years, 80% output

Detailed Information

Panasonic photovoltaic HIT® modules (VBHN330SA16) feature an innovative hetero-junction cell structure made of mono-crystalline and amorphous silicon layers. Ultra-thin amorphous silicon layers prevent recombinations of electrons, keeping carrier loss to an absolute minimum. As a result, HIT® conversion efficiency ratings are among the highest available today.

19.7% module efficiency

Employing 96 cells in the same size footprint, N330 and N325 HIT® produce up to 36% more free electricity compared to conventional 60-cell panels.

More solar power output per square foot
Fewer panels to install, faster installations
Ideal for small roof areas
Greater cost savings for homeowners over a 25-year lifecycle

Datasheet

Documentation

Data Sheet	Panasonic VBHN330SA16
Warranty	Panasonic HIT® Power Module
Installation Guide	Panasonic HIT® Power Module
