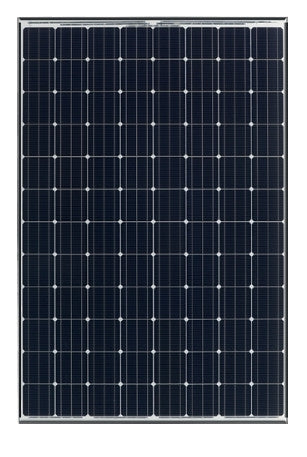

Panasonic VBHN325SA17 > 325 Watt Mono Solar Panel - Black 40mm Frame

Name: Panasonic VBHN325SA17 > 325 Watt Mono Solar Panel - Black 40mm Frame
Brand: Panasonic
SKU: Panasonic-VBHN325SA17
Availability: OutOfStock

by Panasonic

Sold out

$0.00 - $0.00

$0.00

$0.00 - $0.00

$0.00

SKU Panasonic-VBHN325SA17

Quantity

Description
Datasheet

Description

Panasonic > 325 Watt Mono Solar Panel - Black Frame

96 Cell, 40mm Black Frame, White Backsheet

Model	VBHN325SA17
Series	Photovoltaic Module HIT®
Manufacturer	Panasonic

Mechanical

Type	Mono
Dimensions	62.6" x 41.5" x 1.57"
Weight	40.81 lbs
Frame	Black Anodized
Connector	MC4

Electrical

Watts (STC)	325 W
Max Power Voltage (VMPP)	57.6 V
Max Power Current (IMPP)	5.65 A
Open Circuit Voltage (VOC)	69.6 V
Short Circuit Current (ISC)	6.03 A
Max System Voltage (UL)	DC 600 V

Warranty

10 Year product warranty, 90% output
20 years, 80% output

Detailed Information

Panasonic photovoltaic HIT® modules (VBHN330SA17) feature an innovative hetero-junction cell structure made of mono-crystalline and amorphous silicon layers. Ultra-thin amorphous silicon layers prevent recombinations of electrons, keeping carrier loss to an absolute minimum. As a result, HIT® conversion efficiency ratings are among the highest available today.

19.7% module efficiency

Employing 96 cells in the same size footprint, N330 and N325 HIT® produce up to 36% more free electricity compared to conventional 60-cell panels.

More solar power output per square foot
Fewer panels to install, faster installations
Ideal for small roof areas
Greater cost savings for homeowners over a 25-year lifecycle
