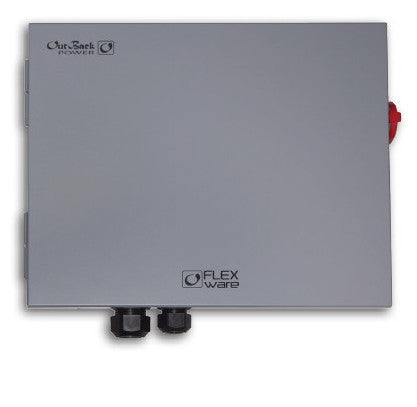

OutBack Power FWPV3-FH600-S2D > SkyBox PV Rapid Shutdown Combiner for SkyBox inverter

by Outback Power
OutBack Power FWPV3-FH600-S2D > SkyBox PV Rapid Shutdown Combiner for SkyBox inverter
Sold out
$0.00 - $0.00
$0.00
$0.00 - $0.00
$0.00
SKU OutBack-FWPV3-FH600-S2D

OutBack Power > SkyBox PV Rapid Shutdown Combiner for SkyBox inverter

FLEXware SkyBox combiner box with PV rapid shutdown, and disconnecting means compatible with up to 3 PV strings, opens up controlled conductors within 10ft of PV array.

The SkyBox RSD-1 is a kit for adding string level rapid shutdown to be used with one SkyBox inverter. For each additional SkyBox inverter, add one more FWPV3-FH600-S2D combiner.

Specifications

Model FWPV3-FH600-S2D
Series SkyBox
Manufacturer OutBack Power

Mechanical

Description SkyBox RSD-1 package for battery-based PV systems
Enclosure MATERIAL: Powder-coated aluminum
RATING: Outdoor rainproof, UL type 3R
SECURITY: Lockable
Mounting Options Vertical to horizontal, external feet provided for mounting
Number of String Inputs 3
Total Maximum Current 48V
Voltage Rating 600VDC
Output Terminals #14 - 2/0
Input Terminals Cable glands #14 to 8 AWG
Operating Temperature -25 to 60°C
Overcurrent Protection Includes (6) 600VDC DIN rail fuse holders (fuses sold separately)
Switch Can be locked in off position
Accessories • FUSE-15-600VDC: Box of ten, 15A fuses
• FUSE-20-600VDC: Box of ten, 20A fuses
• LBL-PVRSS
Dimensions 15.5" x 19.5" 4.5"
Weight 12 lbs.
Certifications • UL1741 with PVRSE
• UL 1699/1699B
• CSA 22.2 107.1-01 with PVRSE
• FCC Part 15 Class B
Shipping Method Ground

Documentation

Data Sheet OutBack Power SkyBox-RSD-1
