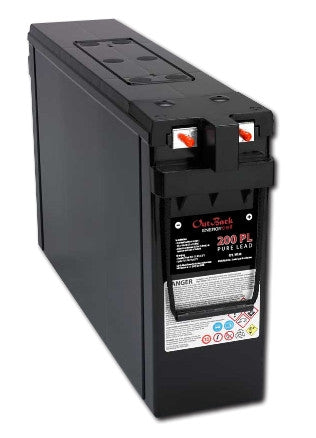

Outback Power EnergyCell > 204 Amp Hour 12 Volt VLRA-AGM Battery - Pure Lead Energy Runtime (PLR)
Manufacturer Part Number: EnergyCell 200PLR
OutBack Power’s
EnergyCell 200PLR batteries are designed for residential, light-commercial grid-tied backup or off-grid renewable energy power demands. With 1,500 cycles at 50% DOD, pure lead extends the life of the battery versus traditional VRLA and allows for increased float capability and maximizes runtime for backup applications.
Specifications
|
|
EnergyCell 200PLR
|
|
Cells Per Unit:
|
6
|
|
Voltage Per Unit:
|
12 VDC
|
Operating Temperature Range
(with temperature compensation)
|
Maximim: -40°F to 113°F (-40°C to 45°C )
|
|
Optimal Operating Temperature Range:
|
68°F to 77°F (20°C - 25°C)
|
Maximum Charging
Current
(Per Battery)
|
200ADC (1/C)
|
|
Float Voltage Charge:
|
13.5 to 13.8 VDC
|
|
Equalization Voltage and Charge Frequency
|
14.1 VDC
|
|
Re-Bulk Voltage
|
14.1 VDC
|
|
Re-Float Voltage
|
13.5 VDC
|
|
Self Discharge Time
|
Battery can be stored up to 18 months at 25°C (77°F) before a freshening
charge is required. For higher temperatures, the time interval will be shorter.
|
Temperature Compensation Factor
(Charging):
|
4mV per battery cell (2V)
|
|
Terminal Type
|
M6 no maintenance terminals
|
|
Weight (lbs/kg):
|
132.3 lbs (59.9 kg)
|
|
Dimensions
|
12.46" x 22.87" x 4.92" (31.65 x 58.09 x 12.5 cm)
|
|
Warranty
|
3 year full replacment
|
|
Accessories
|
Ships with interconnect bars, terminal covers and hardware kit
|
Features
- Batteries designed for residential, light-commercial grid-tied backup or off-grid renewable energy power demands
- 1,500 cycles of 50% DOD
-
Pure lead extends the life of the battery versus traditional VLRA batteries and allows the increased float capability and maximizes runtime for backup applications.
- Easy to install and maintain
- PLR technology means 99% gas recombination efficient, no periodic watering of cells, no re-torquing of terminal connections, and no equalization charge under standard operating conditions
- Optimized to work seamlessly with OutBack power conversion equipment
