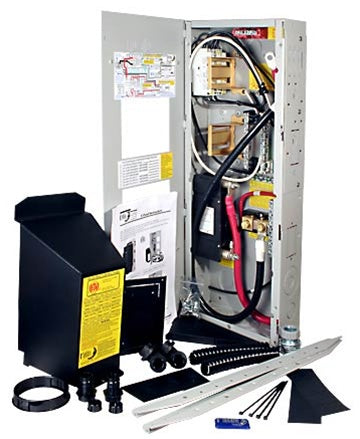

Outback 250 Amp 230 VAC E-Panel

Stretched Gray Steel
Manufacturer Part Number: MNE250STSE-L

All included AC bypass and input disconnect breakers are rated for 277 VAC. Export versions of our standard E-Panels are made using Blue and Brown wire and terminal bus bar insulators. Add an “E” to the end of any model number to create an E-Panel suited for Africa, Australia, New Zealand or Europe. Prices are the same as regular E-Panels.

Features

• Steel or aluminum chassis with all the required openings and knock outs to aid in a NEC compliant system installation.
• Inverter mounts on a unique hinged door to keep the foot print of the system small as possible
• Mounting brackets are included to aid in one person installations
• Inverter battery breaker, inverters cables and snap in grommets included
• 500 amp / 50mv shunt included for battery monitoring systems
• bus bars are included for additional battery plus, PV plus and battery minus wiring
• Heavy duty 175 amp AC power distribution bus bars included
• 50 amp AC input disconnect for generator or utility included, pre-wired (15amp MM series)
• 50 amp AC bypass switch for bypassing inverter circuit, pre-wired (15amp MM series)
• Mounting bracket to aid in mounting an OutBack MX60 or MidNite Classic to the side of the E-Panel
• Battery cable cover to enclose cables external to the chassis
• Inverter and charge controller mounting hardware
• Rectangular cut outs for mounting a North American GFCI style AC outlet
• Cut outs for mounting up to six additional 13mm wide din rail mount breakers for additional circuits
• such as PV, wind, hydro or AC distribution
• Plastic snap in conduit and fittings from chassis to inverter for AC, BTS and control circuits (OB versions)
• ETL listed to UL and CSA standards

Specifications

Detailed Description

The standard E-Panel comes as a left hand hinged assembly with breakers on the left side and a left hand hinged door. The door will open to the left over the breakers. If for some reason you need the breakers on the left, but the door to open to the right, then you need the optional right hand door.
