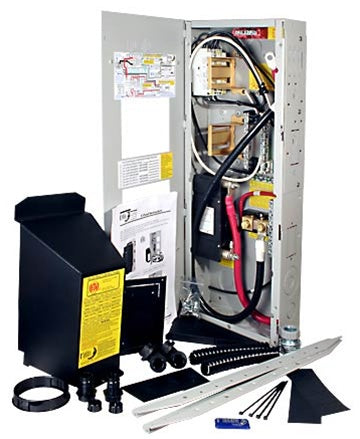

125 Amp Outback E-Panel by Midnite Solar

Midnite Solar E-Panel for Outback Power. 125 AMP / 125 VDC breaker.

The MidNite Solar E-Panel comes standard with the basic over-current protection and disconnects required to install your renewable energy system. It can also be expanded as the need arises, allowing for growth.

• Small size compared to existing disconnect and over current solutions
• Pre-wired to save time, money, and complexity. All field wiring connections clearly labeled.
• White powder coated aluminum or standard gray powder coated steel
• Easily expands to accommodate additional inverters
• Six slots for din rail breakers, PV, wind, hydro, AC distribution
• 500 amp 50mv shunt for battery status monitor systems
• Pre-wired 50 amp 240 VAC inverter AC bypass switch
• Pre-wired 50 amp 240 VAC AC input disconnect
• Bus bars for Battery Plus, Battery Minus and ground
• Mounting hardware for inverter and charge controller
• Snap in plastic conduit for AC, Mate, and RTS wires
• Mounting brackets for hanging E-Panel on wall
• Heavy duty 175 amp AC distribution block
• ETL listed to UL and Canadian standards
• Right hand hinged door to mount inverter
• Knockouts for AC and DC conduits
• Charge control bracket (CCB)
• Cutouts for two GFCI outlets
• DC inverter battery breaker
• Internal inverter cables
