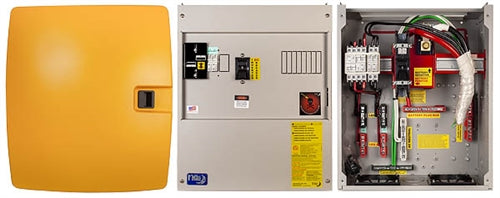

Midnite Solar SMA Dual Master E-Panel

Master E-Panel in a 9-12KW dual Sunny Island inverter system. The dual system can be off-grid, AC coupled, battery backup grid tie or battery backup. One Slave E-Panel and additional Sunny Island required.

This Master E-Panel in a dual Sunny Island inverter system includes a 60amp, 120/240vac Output/Bypass system, separate 60amp, 120/240vac AC input and output breakers for the Master inverter, 250amp battery breaker with inverter cables, 500amp/50mV shunt, battery negative busbar, AC input and output busbars, neutral and ground busbars, AC input and output wiring. All breakers are hydraulic-magnetic and rated for continuous duty. Space provided for 6 additional 1/2" wide din rail mount AC or DC breakers and up to 12 3/4" wide panel mount breakers. Knockouts located for battery cables, lightning protection and AC conduit connections.
