Magnum Energy > Micro MGT500 AC termination 6' cable with one connector

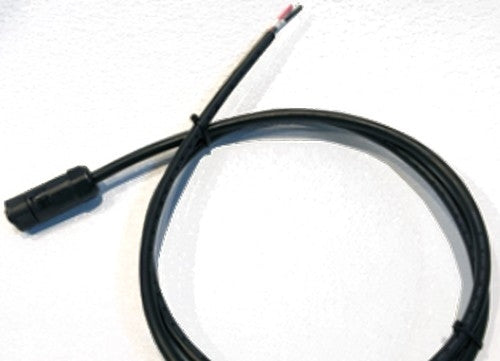

Magnum Energy ME-MGT-AC-F Micro MGT500 AC termination 6ft cable with one connector
The ME-MGT-AC-F AC termination cable is used at one end of each string of inverters to connect to the output in a transition box. The ME-MGT-ENDCAP-F is used to cap the unused connector of the last inverter in a string. The ME-MGT-AC-EXT is a 6 foot long jumper cable with connectors on each end to allow greater spacing between two inverters.
|
Model
|
ME-MGT-AC-F |
|
Series
|
MicroGT
|
|
Manufacturer
|
Magnum Energy
|
Features
The ME-MGT-MW MagwebGT is the gateway and communication unit for the Micro GT inverters. It plugs into a 120 VAC outlet near the system and reads the data from the inverters. One connection from the MagwebGT is made to the owners router via an Ethernet cable supplied. Indoor NEMA 1, listed to IEC 60950-1, EN60950-1, IEC 60529, ANSI/UL 60950-1, CAN/CSA C22.2 No.60950-1
These micro-inverters have been optimized to communicate with the Magnum MS-PAE off grid inverters to form a functional AC coupled grid tied system with battery backup. The ME-MGT-ADAPTER allows communication between the MagwebGT and a Magnum MS-PAE series battery inverter. Frequency shift in the MS-PAE inverter will cause the GT micro-inverters to reduce power output to prevent battery overcharge during a power outage. An AC coupled system is limited to one MS-PAE inverter and eight GT500 or six GT600 inverters.
- Micro GT500 AC termination 6ft cable with one connector.
- Used to connect the string to an AC circuit.
