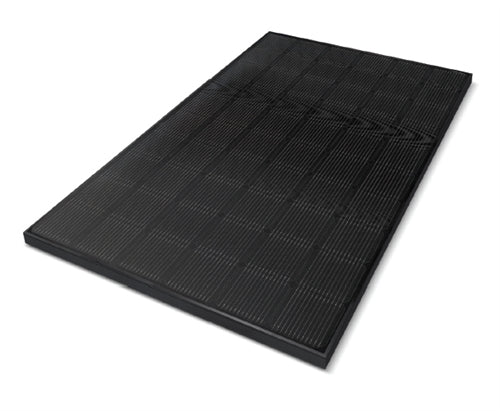

LG Solar > 340 Watt NeON 2 Solar Panel, Cello technology - All Black
40mm Black Frame, Black Backsheet.
60 Cell, high efficiency monocrystalline PV module. (Neon 2, adopts Cello technology)
Note: LG's L5 series frame differs from that of the A5: the module short rail (top and bottom w/ J-Box upright) features a narrower lip than that of A5. Side rail mounting may be required for some module frame mounted MLPE solutions.
|
Model
|
LG340N1K-L5
|
|
Series
|
NeON™2
|
|
Manufacturer
|
LG Solar
|
Mechanical
|
Type
|
Monocrystalline / N-type
|
|
Dimensions
|
66.93" x 40" x 1.57"
|
|
Weight
|
39.68 lbs
|
|
Frame
|
Black Anodized Aluminum
|
|
Connector
|
MC4
|
Electrical
|
Watts (STC)
|
340 W
|
|
Max Power Voltage (VMPP)
|
34.9 V
|
|
Max Power Current (IMPP)
|
9.75 A
|
|
Open Circuit Voltage (VOC)
|
41.2 V
|
|
Short Circuit Current (ISC)
|
10.35 A
|
|
Max System Voltage
|
DC 1000 V
|
Warranty
- The NeON® 2 Black is covered by a 25-year limited product warranty. In addition, up to $450 of labor costs will be covered in the rare case that a module needs to be repaired or replaced.
Detailed Information
All Black LG NeON 2 - L5 Series 340w module with extended performance warranty, offers best in class aesthetics with one of the industry's best warranties. LG NeON 2 Modules feature LG's Cello Technology with 12 thin busbar wires spanning every cell. All L5 series NeON 2 modules come with LG's 25-25-25 Warranty terms; these cover product, performance and RMA truck roll fee. LG's L5 series frame differs from that of the A5: the module short rail (top and bottom w/ J-Box upright) features a narrower lip than that of A5. Side rail mounting may be required for some module frame mounted MLPE solutions.
Features
-
Enhanced Performance Warranty
LG NeON® 2 Black has an enhanced performance warranty. After 25 years, LG NeON® 2 Black is guaranteed at least 90.08% of initial performance
-
Solid Performance on Hot Days
LG NeON® 2 Black performs well on hot days due to its low temperature coefficient
-
25-Year Limited Product Warranty
The NeON® 2 Black is covered by a 25-year limited product warranty. In addition, up to $450 of labor costs will be covered in the rare case that a module needs to be repaired or replaced.
-
Roof Aesthetics
LG NeON® 2 Black has been designed with aesthetics in mind using thinner wires that appear all black at a distance.
-
Bifacial Energy Yield
LG NeON 2 modules use a highly efficient bifacial solar cell, “NeON” applied Cello technology for better energy production than standard monofacial PV module.
