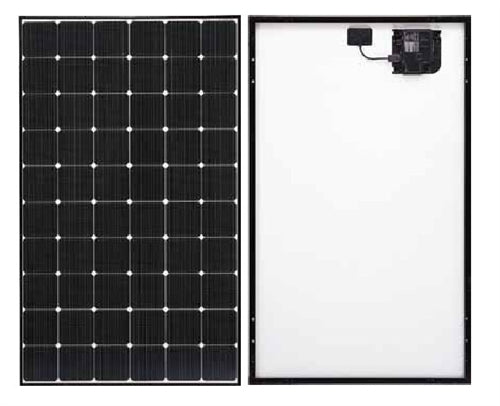

LG Solar > 330 Watt Black Frame NeON™2 ACe Solar Panel, with Enphase IQ6+ Micro Inverter
40mm Black Frame, White Backsheet with Enphase IQ6+ Microinverter.
60 Cell, high efficiency monocrystalline PV module.
|
Model
|
LG330E1C-A5
|
|
Series
|
NeON™2 Black ACe
|
|
Manufacturer
|
LG Solar
|
Mechanical
|
Type
|
Monocrystalline / N-type
|
|
Dimensions
|
66.4" x 40" x 1.6"
|
|
Weight
|
41.88 lbs
|
|
Frame
|
Black Anodized Aluminum
|
|
Inverter Model
|
Enphase IQ6+ Microinverter
|
DC Electrical Properties
|
Watts (STC)
|
330 W
|
|
Module Efficiency
|
19.3
|
|
Power Tolerance
|
0 ~ +3
|
AC Electrical Properties
|
Peak Output Power
|
290 V
|
|
Max. Continuous Output Power
|
280 V
|
|
Nominal Voltage / Range
|
240 / 211~264 V
|
|
Nominal Output Current
|
1.17 A
|
|
Nominal Frequency / Range
|
60.0 / 59.3~60.5 Hz
|
|
Power Factor / Adjustable
|
1 / 0.7leading…0.7lagging
|
|
CEC Weighted Efficiency
|
97.0%
|
|
Max. Branch Circuit Over Current Protection
|
20
|
|
Number of Max. AC Modules
|
13
|
Warranty
- 12 year product warranty - Solar Module
- 25 year product warranty - Micro Inverter
- NEW Linear warranty*
1st year: 98%, 2) After 2nd year: 0.6%p annual degradation, 3) 83.6% for 25 years
Documentation
Detailed Information
The LG NeON® 2 ACe is embedded AC module, which combines LG NeON® 2 Black high power DC module and Enphase Micro inverter IQ6+. As they are combined, LG NeON® 2 ACe can simplify all the processes such as logistics, installation, and monitoring.
Features
-
High Power Output
The LG NeON® 2 series are proven to produce high energy output with top level efficiency.
Unique high-efficiency n-type cell gives customer flexible use of roof space.
-
Simplified Logistics
Embedding micro inverter to LG NeON® 2 Black, PV system became one product.
It gives people benefit of simple order, storage and transport.
-
Enhanced Long-term Reliability
The LG NeON® 2 Black ACe has 15mm AIR GAP between DC module and Micro inverter.
The air gap cooling DC module and inverter down restricts decrease of performance by heats.
-
Safer Solar Roof System
The LG NeON® 2 Black ACe can be applied as safe system with low-voltage DC power system on roofs.
Moreover, it conforms every norm for residential use such as NEC 2014 and 2017.
-
User Friendly Monitoring
“Enlighten” and “Installer’s tookit” monitoring system helps home monitoring and managing installation via web and mobile.
-
Quick Installation
When LG NeON® 2 Black ACe is installed on a roof, only two steps are needed: lifting and connecting.
Therefore, LG NeON® 2 Black ACe can save the efforts and time for installation.
