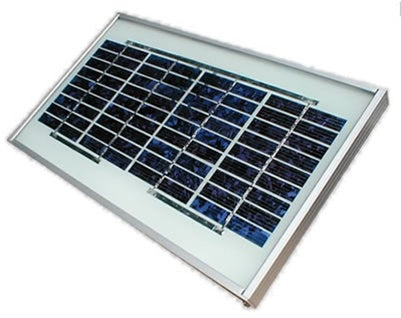

Kyocera KS5, Solar Panel, 5 Watt, 12 Volt
MULTICRYSTAL PHOTOVOLTAIC MODULE
Kyocera´s advanced cell processing technology and automated production facilities have produced a highly efficient multicrystal photovoltaic module. These cells are encapsulated between a tempered glass cover and an EVA pottant with PVF back sheet to provide maximum protection from the severest environmental conditions. The entire laminate is installed in an anodized aluminium frame to provide structural strength and ease of installation.
The Kyocera KS5 is ideal for:
- Microwave / radio repeater stations
- Pumping systems for irrigation, rural water supplies and livestock watering
- Electrification of villages in remote areas
- Medical facilities in rural areas
- Aviation obstruction lights
- Power source for summer vacation homes
- Cathodic protection systems
- Emergency communication systems
- Desalination systems
- Water quality and environmental data monitoring systems
- Recreational vehicles
- Railroad signals
- Navigation lighthouses, and ocean buoys
- Sailboat charging systems
Kyocera KS5 Electrical Specifications
Max Power: 5 Watts
Max Power Voltage: 16.9 volts
Max Power Current: 0.29 Amps
Open Circuit Voltage: 21.5 Volts
Short-Circuit Current: 0.31 Amps
Kyocera KS5 Physical Specifications
Dimensions (LxWxD): 8.07" x 13.86" x 0.87" (205 x 352 x 22mm)
Weight: 2.7 lbs (1.2 kg)
Note: The electrical specifications are under test conditions of Irradiance of
1 kW/m2, Spectrum of 1.5 air mass and cell temperature of 25ºC
