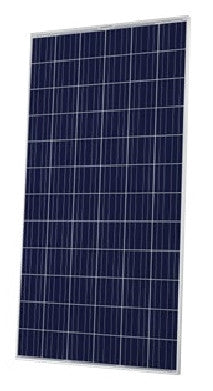

Hanwha Q-Cells 340 Watt Poly Solar Panel
Clear Frame, White Backsheet.
The Q.ANTUM solar module Q.PLUS L-G4.2 with power classes up to 340 Wp is the strongest module of its type on the market globally. Powered by 72 Q CELLS solar cells Q.PLUS L-G4.2 was specially designed for large solar power plants to reduce BOS costs. Only Q CELLS offers German engineering quality with our unique triple Yield Security.
	|
		Model
	 |

		Q.Plus-L-G4.3 - 340 W
	 |
	|
		Series
	 |

		Q.Plus-L-G4.3
	 |
	|
		Manufacturer
	 |

		Hanwha
	 |
Mechanical
	|
		Type
	 |

		Polycrystalline
	 |
	|
		Dimensions
	 |

	78.5" x 39.4" x 1.57"
	 |
	|
		Weight
	 |

		52.90 lbs
	 |
	|
		Frame
	 |

		Silver anodized aluminum
	 |
	|
		Connector
	 |

		Junction Box
	 |
Electrical
	|
		Watts (STC)
	 |

		 340 W
	 |
	|
		Max Power Voltage (VMPP)
	 |

		 37.63 V
	 |
	|
		Max Power Current (IMPP)
	 |

		 9.03 A
	 |
	|
		Open Circuit Voltage (VOC)
	 |

		 47.07 V
	 |
	|
		Short Circuit Current (ISC)
	 |

		 9.59 A
	 |
	|
		Max System Voltage (UL)
	 |

		DC 1500 V
	 |
Warranty
	- 12 Years Product

	- 25 Years linear performance

Documentation
Features
	-
	Low Electricity Generation Costs -
	Higher yield per surface area and lower BOS costs thanks to higher power classes and an efficiency rate of up to 17.4 %.

	-
	Innovative All-Weather Technology -
	Optimal yields, whatever the weather with excellent low-light and temperature behavior.
	-
	Enduring High-Performance -
	Long-term yield security with Anti-PID Technology, Hot-Spot-Protect and Traceable Quality Tra.Q™.
	-

	Light-Weight Quality Frame -
	High-tech aluminum alloy frame, certified for high snow (5400 Pa) and wind loads (2400 Pa).
	-

	A Reliable Investment -
	Inclusive 12-year product warranty and 25-year linear performance guarantee.
