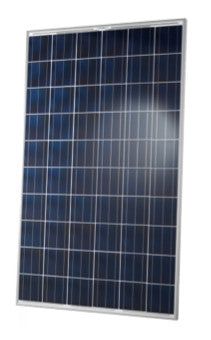

Hanwha Q.PLUS-G3 280 > Q Cells 280 Watt Poly Solar Panel
Silver Frame, White Backsheet
The new high-performance module Q.PlUs-G3 is the ideal solution for all applications thanks to its innovative cell technology Q.ANTUM.
The world-record cell design was developed to achieve the best performance under real conditions - even with low radiation intensity and on clear, hot summer days. Q.PlUs-G3 is distinguished by optimal output yield, operating reliability and durability, as well as a more intelligent design and quick installation.
|
Model
|
Q.PLUS-G3 280
|
|
Series
|
Q.PLUS-G3
|
|
Manufacturer
|
Hanwha
|
Mechanical
|
Type
|
Polycrystalline
|
|
Dimensions
|
65.7" x 39.4" x 1.38"
|
|
Weight
|
41.89 lbs
|
|
Frame
|
Silver anodized aluminum
|
|
Connector
|
Junction Box
|
Electrical
|
Watts (STC)
|
282.5 W
|
|
Max Power Voltage (VMPP)
|
31.38 V
|
|
Max Power Current (IMPP)
|
9.00 A
|
|
Open Circuit Voltage (VOC)
|
39.41 V
|
|
Short Circuit Current (ISC)
|
9.62 A
|
|
Max System Voltage (UL)
|
DC 1000 V
|
Warranty
- 12 Years Product
- 25 Years linear performance
Documentation
Detailed Information
Innovative All-Weather Technology
- Maximum yields with excellent low-light and temperature behaviour.
- Increased cell efficiency due to fullsquare monocrystalline cells.
Enduring High Performance
- Long-term Yield Security due to Anti PID Technology, Hot-Spot Protect, and Trace able Quality Tra.Q™.
- Long-term stability due to VDE Quality
Safe Electronics
- Protection against short circuits and thermally induced power losses due to breath able junction box
and welded cables.
- Increased flexibility due to MC4-intermateable connectors.
Profit-Increasing Glass Technology
- Reduction of light reflection by 50 %, plus long-term corrosion resistance due
to high-quality Sol-Gel roller coating processing.
LightWeight Quality Frame
- Stability at wind loads of up to 5400 Pa with a module weight of just 19 kg due to slim
frame design with high-tech alloy.
Maximum Cost Reductions
- Up to 31 % lower logistics costs due to higher module capacity per box.
Extended Warranties
- Investment security due to 12-year product warranty and 25-year linear performance warranty.
The Ideal Solution for: Rooftop arrays on residential buildings.
