Enphase > IQ AC Combiner 240 VAC with IQ Envoy Communications Gateway + LTE Cell Modem and 5 year Data Plan - IQ System
Manufacturer Part Number:
X-IQ-AM1-240-3C-ES
AC Combiner-3C with IQ Envoy, Single Phase. Revenue Grade accuracy, consumption Metering available. Consumption Metering available when used with Split Core CTs with integrated LTE-M cell modem and 5 year data plan for up to 60 IQ Inverters for US, Puerto Rico, Canada, and Mexico. Space for 4 Eaton BR 2 Pole Breakers NOT included
Note: Eaton BR series breakers (BR220) required, sold separately.

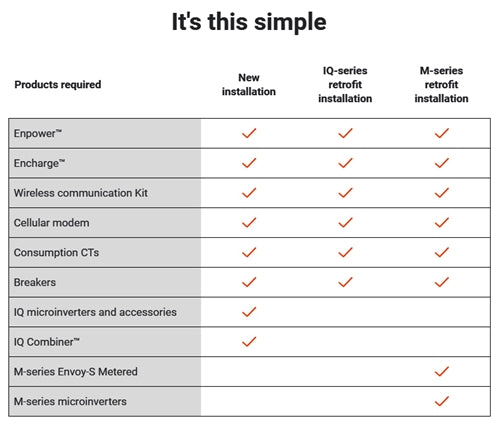

Also sold separately, not included with Enphase X-IQ-AM1-240-3C-ES combiner:
•
Enphase COMMS-KIT-01 > Ensemble Communications Kit
The Enphase IQ Combiner 3C with Enphase IQ Envoy and integrated LTE-M cell modem with 5-year data plan consolidates interconnection equipment into a single enclosure and streamlines PV and storage installations by providing a consistent, pre-wired solution for residential applications. It offers up to four 2-pole input circuits and Eaton BR series bus bar assembly.
The Enphase Combiner now comes cellular hardware built in and a 5 year LTE Data Plan for up to 60 micro-inverters. The 3C IQ Combiner is smaller than previous generations and supports up to 80A total of PV / Storage Branch circuits. This versatile solution also supports networking through Wi-Fi or Ethernet, and offers optional AC receptacle for PLC Bridge. Supports up to four 2-Pole branch circuits for 240 VAC plug-in breakers (sold separately).
The Enphase IQ Combiner™ with Enphase IQ Envoy™ are for integrated revenue grade PV production metering (ANSI C12.20 +/- 0.5%) and optional consumption monitoring (+/- 2.5%).
Mechanical
|
Type
|
X-IQ-AM1-240-3C:
IQ Combiner 3C with Enphase IQ Envoy™ printed circuit board for integrated revenue grade PV production metering (ANSI C12.20 +/- 0.5%) and optional* consumption monitoring (+/- 2.5%).
Includes Enphase Mobile Connect LTE-M cell modem and 5-year data plan. A Plug-and-play industrial-grade cellular modem with data plan for systems up to 60 microinverters.
(Available in the US, Canada, Mexico, Puerto Rico, and the US Virgin Islands, where there is adequate cellular service in the installation area.)
|
|
Internet Connection Options: (Accessories)
|
• Integrated Wi-Fi: 802.11b/g/n
• Ethernet: Optional, 802.3, Cat5E (or Cat 6) UTP Ethernet cable (not included)
• Cellular: Optional, CELLMODEM-01 (3G) or CELLMODEM-03 (4G) or CELLMODEM-M1 (4G based LTE-M)
(not included)
|
|
Dimensions
|
19.5" x 14.75" x 6.63"
Height is 21.06" with mounting brackets.
|
|
Weight
|
16.5 lbs
|
|
Altitude
|
To 2000 meters (6,560 feet)
|
|
Compliance, Combiner
|
UL 1741
CAN/CSA C22.2 No. 107.1
47 CFR, Part 15, Class B, ICES 003
Production metering: ANSI C12.20 accuracy class 0.5 (PV production)
|
|
Compliance, IQ Envoy
|
UL 60601-1/CANCSA 22.2 No. 61010-1
|
Features
Smart
- Includes IQ Envoy for communication and control
- Includes LTE-M cell modem and 5-year data plan
- Flexible networking supports Wi-Fi, Ethernet, or cellular
- Optional AC receptacle available for PLC bridge
- Provides production metering and optional consumption monitoring
Simple
- Reduced size from previous combiner
- Centered mounting brackets support single stud mounting
- Supports back and side conduit entry
- Up to four 2-pole branch circuits for 240 VAC plug-in breakers (not included)
- 80 A total PV or storage branch circuits
Reliable
- Durable NRTL-certified NEMA type 3R enclosure
- Five-year warranty
- UL listed
