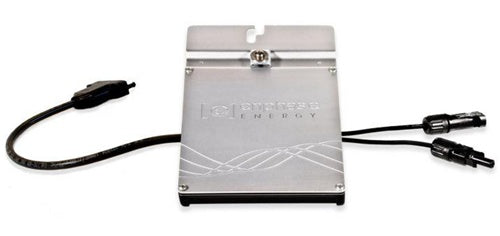

Enphase 215 Watt 208/240 VAC Micro Inverter
Designed for installations using Zep racking.
| Model |
M215-60-2LL-S22-ZC |
| Series |
M215 |
| Manufacturer |
Enphase Energy |
Mechanical
| Type |
Grid Tie - Micro Inverter |
| Ambient Temperature Range |
-40°C to +65°C |
| Operating Temperature Range |
-40°C to +85°C |
| Enclosure |
Outdoor - NEMA 6 |
| Cooling |
Natural Convection - No fans |
| Connectors |
MC4 |
| Dimensions (W x H x D) |
6.8" x 6.45" x 1.0" |
| Weight |
3.5 lbs |
| Shipping Method |
Ground |
Input (DC)
| Recommended PV Power (STC) |
190 W - 260 W |
| Max Voltage |
45 V |
| Nominal Voltage |
|
| Peak Power Tracking Voltage |
22 V - 36 V |
| Operating Range |
16 V - 36 V |
| Min/Max Start Voltage |
22 V / 45 V |
| Max Current |
10.5 A |
Output (AC)
| Maximum Output Power |
215 W |
| Nominal Voltage |
208 V / 240 V |
| Voltage Range |
183 V - 229 V / 211 V - 264 V |
| Frequency |
60 Hz (North America) |
| Max Current |
|
Features
- Maximum energy production
- Resilient to dust, debris and shading
- Performance monitoring per module
- System availability greater than 99.8%
- No single point of system failure
- Quick and simple design, installation and management
- 24/7 monitoring and analysis
- Low voltage DC
- Reduced fire risk
Detailed Description
Enphase's simple innovation is to place a single inverter on each solar panel instead of using a single, massive inverter for an entire array. Improved overall efficiency is just one of the host of benefits of per-panel solutions like these "micro inverters": they also significantly reduce the impact of shading issues and are budget-friendly, allowing a system to be built literally a panel at a time.
The M215 is the latest in Enphase's line of micro inverters. Smaller and more efficient than its predecessors, the M215 reduces overall cost by shifting some of its burden towards the specially designed "Engage" cabling system. This product works with 60-cell solar modules only.
