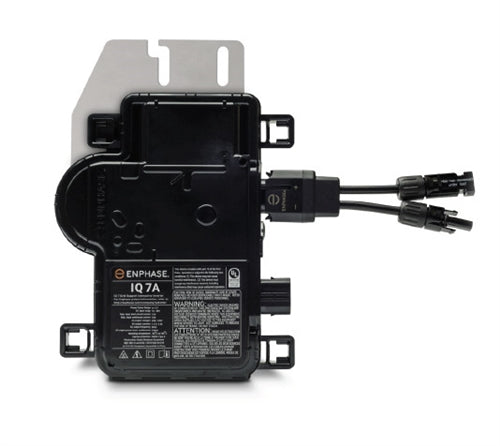

Enphase IQ 7A > 366 Watt MC4 Micro Inverter - IQ System
The IQ7A micro inverter from Enphase are designed to handle 295 to 490 watt solar panels. The IQ7A is compatible with 60-cell and 72-cell solar panels.
Peak output power 366 VA @ 240 VAC and 295 VA @ 208 VAC
|
Model
|
IQ7A-72-2-US
|
|
Series
|
IQ7
|
|
Manufacturer
|
Enphase Energy
|
Mechanical
|
Type
|
Grid Tie - Micro Inverter
|
|
Ambient Temperature Range
|
-40°C to +65°C
|
|
Approved for wet locations
|
Yes
|
|
Enclosure
|
Class II double-insulated, corrosion resistant polymeric enclosure
|
|
Environmental category / UV exposure rating
|
NEMA Type 6 / outdoor
|
|
Cooling
|
Natural Convection - No fans
|
|
Connectors
|
MC4 (or Amphenol H4 UTX with additional Q-DCC-5 adapter)
|
|
Dimensions (W x H x D)
|
8.35" x 6.89" x 1.19" (without bracket)
|
|
Weight
|
2.38 lbs
|
|
Shipping Method
|
Ground
|
Input (DC)
Commonly used module pairings:
Recommended PV Power (STC)
|
295 W–460 W +
|
|
Module compatibility
|
60-cell and 72-cell PV modules
|
|
Max Voltage
|
58 V
|
|
Peak Power Tracking Voltage
|
38 V - 43 V
|
|
Operating Range
|
18 V - 58 V
|
|
Min/Max Start Voltage
|
30 V / 58 V
|
|
Max DC short circuit current (module Isc)
|
15 A
|
|
Overvoltage class DC port
|
II
|
|
DC port backfeed under single fault
|
0 A
|
|
PV array configuration
|
1 x 1 ungrounded array; No additional DC side protection required; AC side protection requires max 20A per branch circuit
|
Output (AC)
|
Peak Output Power
|
240 V / 366 VA
208 V / 295 VA |
|
Maximum continuous output power
|
240 V / 349 VA
208 V / 290 VA |
|
Nominal (L-L) voltage/range²
|
240 V / 211-264 V
208 V / 183-229 V
|
|
Maximum continuous output current
|
1.45 A @ 240 V
1.39 A @ 208 V
|
|
Nominal frequency
|
60 Hz
|
|
Extended frequency range
|
47 - 68 Hz
|
|
AC short circuit fault current over 3 cycles
|
5.8 Arms
|
|
Power factor at rated power
|
1.0
|
|
Maximum units per 20 A branch circuit
|
11 (240 VAC)
11 (single-phase 208 VAC)
|
|
Overvoltage class AC port
|
III
|
|
AC port backfeed under single fault
|
18 mA |
|
Power factor setting
|
1.0
|
|
Power factor (adjustable)
|
0.85 leading ... 0.85 lagging
|
Features
High Power
- Peak output power 366 VA @ 240 VAC and 295 VA @ 208 VAC
Easy to Install
- Lightweight and simple
- Faster installation with improved, lighter two-wire cabling
- Built-in rapid shutdown compliant (NEC 2014 & 2017)
Efficient and Reliable
- Optimized for high powered 60-cell and 72-cell modules
- Highest CEC efficiency of 97%
- More than a million hours of testing
- Class II double-insulated enclosure
- UL listed
Smart Grid Ready
- Complies with advanced grid support, voltage and frequency ride-through requirements
- Envoy and Internet connection required
- Configurable for varying grid profiles
- Meets CA Rule 21 (UL 1741-SA)
Detailed Desription
The high-powered smart grid-ready
Enphase IQ 7A Micro™ dramatically simplifies the
installation process while achieving the highest system efficiency for systems with 60-cell and 72-cell modules.
Part of the Enphase IQ System, the IQ 7A Micro integrates with the Enphase IQ Envoy™, Enphase IQ Battery™, and the Enphase Enlighten™ monitoring and analysis software.
The IQ Series Microinverters extend the reliability standards set forth by previous generations and undergo over a million hours of power-on testing, enabling Enphase to provide an industry-leading warranty of up to 25 years.
Also known as:
IQ 7A-72
IQ7A72
IQ 7A
