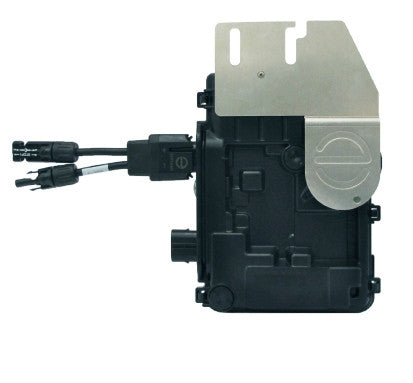

Enphase IQ 6+ > 290 Watt MC4 Micro Inverter - IQ System
The IQ6+ micro inverter from Enphase is designed to handle 235 to 400 watt solar panels. The IQ6+ are compatible with 60-cell and 72-cell solar panels.
240 Split Phase ONLY
|
Model
|
IQ6PLUS-72-2-US
|
|
Series
|
IQ6
|
|
Manufacturer
|
Enphase Energy
|
Mechanical
|
Type
|
Grid Tie - Micro Inverter
|
|
Ambient Temperature Range
|
-40°C to +65°C
|
|
Approved for wet locations
|
Yes
|
|
Enclosure
|
Outdoor - NEMA 250, type 6 (IP67)
|
|
Cooling
|
Natural Convection - No fans
|
|
Connectors
|
MC4 or Amphenol H4 UTX
|
|
Dimensions (W x H x D)
|
8.62" x 7.52" x 1.49" (without bracket)
|
|
Weight
|
3.3 lbs
|
|
Shipping Method
|
Ground
|
Input (DC)
Commonly used module pairings:
Recommended PV Power (STC)
|
235 W - 400 W
|
|
Max Voltage
|
62 V
|
|
Peak Power Tracking Voltage
|
27 V - 45 V
|
|
Operating Range
|
16 V - 62 V
|
|
Min/Max Start Voltage
|
22 V / 62 V
|
|
Max DC short circuit current (module Isc)
|
15 A
|
|
Overvoltage class DC port
|
II
|
|
DC port backfeed under single fault
|
0 A
|
|
PV array configuration
|
1 x 1 ungrounded array; No additional DC side protection required; AC side protection requires max 20A per branch circuit
|
Output (AC)
|
Peak Output Power
|
290 VA
|
|
Maximum continuous output power
|
280 VA
|
|
Nominal voltage/range²
|
240 V / 211-264 V
208 V (1Φ) / 183-229 V
|
|
Nominal output current
|
1.17 A @ 240 V
1.35 A @ 208 V
|
|
Nominal frequency
|
60 Hz
|
|
Extended frequency range
|
47 - 68 Hz
|
|
Power factor at rated power
|
1.0
|
|
Maximum units per 20 A branch circuit
|
13 (240 VAC)
11 (single-phase 208 VAC)
|
|
Overvoltage class AC port
|
III
|
|
AC port backfeed under single fault
|
0 A
|
|
Power factor (adjustable)
|
0.7 leading ... 0.7 lagging
|
Features
Easy to Install
- Lightweight
- Simple cable management
- Built-in rapid shutdown (NEC 2014)
Productive
- Optimized for high powered modules
- Supports 60 and 72-cell modules
- Maximizes energy production
Smart Grid Ready
- Complies with fixed power factor, voltage and
frequency ride-through requirements
- Remotely updates to respond to changing grid requirements
- Configurable for varying grid profiles
Detailed Description
Designed for higher powered modules, the smart grid ready Enphase
IQ 6 Micro™ and Enphase IQ 6+ Micro™ are built on the sixth-generation platform and achieve the highest efficiency
for module-level power electronics and reduced cost per watt.
Part of the Enphase IQ System, the IQ 6 and IQ 6+ Micro integrate seamlessly with the Enphase IQ Envoy™, Enphase IQ Battery™, and the Enphase Enlighten™ monitoring and analysis software.
The IQ 6 and IQ 6+ Micro are very reliable as they have fewer parts and undergo over 1 million hours of testing. Enphase provides an industry-leading warranty of up to 25 years.
