Enphase > IQ6/IQ7 System Controller / Smart Switch - Ensemble System

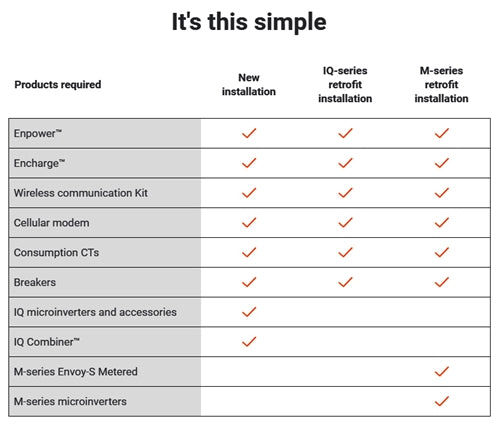

Enphase Enpower Smart Switch / IQ System Controller Model EP200G101-M240US00 is perfect for retrofit IQ6/IQ7 Systems.
NOTE: This unit is only compatible with the IQ6 &IQ7 series of micronverters and is NOT compatible with the IQ8 series of micronverters.
The
Enphase Enpower smart switch connects the home to grid power, the Encharge storage system, and solar PV. It provides microgrid interconnection device (MID) functionality by automatically detecting and seamlessly transitioning the home energy system from grid power to backup power in the event of a grid failure. It consolidates interconnection equipment into a single enclosure and streamlines grid independent capabilities of PV and storage installations by providing a consistent, pre-wired solution for residential applications.
Enphase Enpower smart switch with neutral-forming transformer (NFT), Microgrid
Interconnect Device (MID), breakers, and screws. Streamlines grid-independent capabilities of PV and storage installations.
Specifications
|
Model
|
Enpower / EP200G101-M240US00
|
|
Series
|
Ensemble
|
|
Manufacturer
|
Enphase Energy
|
|
Warranty
|
10 Year Limited Warranty
|
Mechanical
|
Dimensions
|
19.7" x 36" x 9.7"
|
|
Weight
|
82 lbs
|
|
Enclosure
|
Outdoor - NEMA type 3R, polycarbonate construction
|
|
Altitude
|
To 2500 meters (8,200 feet)
|
|
Mounting
|
Wall Mount
|
|
Compliance (pending)
|
UL 1741, UL 1741 SA, UL1998, CSA 22.2 No. 107.1, 47 CFR, Part 15, Class B, ICES 003, AC156.
|
Product Features
Reliable
- Durable NEMA type 3R enclosure
- Ten-year limited warranty
Smart
- Controls safe connectivity to the grid
- Automatically detects grid outages
- Provides seamless transition to backup
Simple
- Connects to the load or service entrance side of the main load panel
- Centered mounting brackets support single stud mounting
- Supports conduit entry from the bottom, bottom left side, and bottom right side
- Supports whole home and partial home backup and subpanel backup
- Up to 200A main breaker support
- Includes neutral-forming transformer for split phase 120/240 V backup operation
