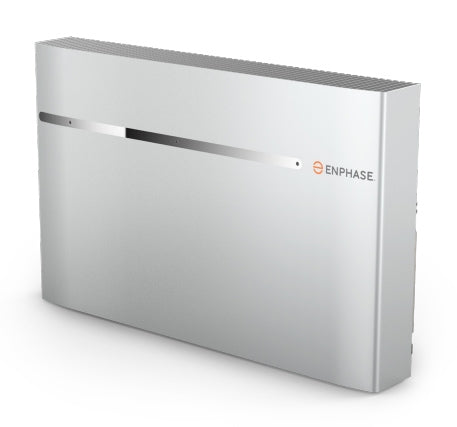

Enphase IQ Battery 10T > AC Coupled 10.08kWh Lithium Iron Phosphate Battery Storage System
The
Enphase IQ 10T™ all-in-one AC-coupled LFP storage system is reliable, smart, simple, and safe. It is comprised of three base IQ 3T™ storage units, has a total usable energy capacity of 10.08 kWh and twelve
embedded grid-forming microinverters with 3.84 kW power rating. It provides backup capability and installers can quickly design the right system size to meet the needs of both new and retrofit solar customers.
Enphase 10T battery storage system with integrated Enphase IQ Series microinverters and battery management unit (BMU). Includes:
- Three IQ 3T.36kWh base units (B03-T01-US00-1-3)
- One IQ 10T™ cover kit with cover, wall mounting bracket, and
interconnect cable for wiring between batteries (B10T-C-1290-O)
• Enphase University - Installers must take these courses in order to install Enphase IQ.
We recommend having 100% of your installers take this certification course if you do battery installations.
Please note:
Installer certification is required. Courses are available online through the Enphase University platform. The estimated completion time is 4-5 hours. Certification is required for system commissioning
Specifications
|
Model
|
IQ 10T / IQ-Battery-10T-1P-NA
|
|
Series
|
IQ |
|
Manufacturer
|
Enphase Energy
|
|
Warranty
|
> 70% capacity, up to 10 years or 4000 cycles
|
Mechanical
|
Dimensions
|
50.5" x 30.5" x 7.4"
|
|
Weight
|
316.5 lbs
|
|
Enclosure
|
Outdoor - NEMA 3R
|
|
Cooling
|
Natural convection – No fans
|
|
Altitude
|
To 2500 meters (8,200 feet)
|
|
Mounting
|
Wall Mount
|
Features and Compliance
|
Compatibility
|
Compatible with grid-tied PV systems. Compatible with Enphase M Series and IQ Series Micros, Enphase IQ, and Enphase IQ Envoy for backup operation.
|
|
Communication
|
Wireless 2.4 GHz
|
|
Services
|
Backup, self-consumption, TOU, Demand Charge, NEM Integrity
|
|
Monitoring
|
Enlighten Manager and MyEnlighten monitoring options; API integration
|
|
Compliance
|
UL 9540, UN 38.3, UL 9540A, UL 1998, UL 991, NEMA Type 3R, AC156
EMI: 47 CFR, Part 15, Class B, ICES 003
Cell Module: UL 1973, UN 38.3
Inverters: UL 62109-1, IEC 62109-2, UL 1741SA, CAN/CSA C22.2 No. 107.1-16, and IEEE 1547
|
Product Features
Reliable
- Proven high-reliability IQ Series Microinverters
- Ten-year limited warranty (optional 5 year warranty extension)
- Three independent IQ 3T storage base units
- Twelve embedded IQ8X-BAT Microinverters
- Passive cooling (no moving parts/fans)
Smart
- Grid-forming capability for backup operation
- Remote software and firmware upgrade
- Mobile app-based monitoring and control
- Support for self consumption
- Utility time of use (TOU) optimization
Simple
- Fully integrated AC battery system
- Quick and easy plug-and-play installation
- Interconnects with standard household AC wiring
Safe
- Cells safety tested
- Lithium iron phosphate (LFP) chemistry for maximum safety and longevity
