This DIY 2.4 kWhs off-grid solar kit contains everything but the installer!
This small do it yourself off-grid system is perfect for powering a small cabin, mobile or marine application or as an emergency back-up system. You could run most refrigerators for a day, charge your cell phone, lap top, watch t.v. for a few hours or even just run your lights. The possibilities are endless! Use in the event of a power outage, or on the go at a campground. Your solar panels will charge your batteries during the day and the 120V inverter will allow you to power most appliances. Just be sure not to plug anything in that would exceed 2000 watts.

To take advantage of this offer, order online or contact our sales department at 888-899-3509 ext. 1.

EcoDirect Off-Grid-System-2.4kWhs - Items included with this DIY kit:

• Trina Solar TSM-330DD06M-BK > 330 Watt Mono Solar Panel - 35mm frame - All Black - Qnty. 2
• Fullriver DC224-6A > 6 Volt 224 Amp Hour AGM Battery - Qnty. 4
• Cotek SP2000-124 > 2000 Watt 24 Volt Inverter / Pure Sine Wave - Qnty. 1
• Cotek CR16A > Remote for Cotek SD and SP Series Inverters - Qnty. 1
• Morningstar ProStar PS-MPPT-25M > 25 Amp 12/24 Volt MPPT Charge Controller > with Digital Meter - Qnty. 1
• Morningstar ProStar PS-MPPT-WB > Wire Box for Morningstar ProStar Charge Controller - Qnty. 1
• MorningStar RTS > Remote Temperature Sensor w/33' cable - Qnty. 1
• Midnite Solar Big Baby Box Enclosure - BBBE - Qnty. 1
• MidNite Solar 15 amp 150 VDC Din Rail Mount Breaker, MNEPV15 - Qnty. 1
• MidNite Solar 30 amp 150 VDC Din Rail Mount Breaker, MNEPV30 - Qnty. 1
• FB2-300 > 300 A fuse and holder with studs - Qnty. 1
• Tamarack Solar 89228 > 4 Module Kit - 2.3" Deep 84" Length Rails - Black Finish
• 50' MC4 Cable Extension #10 AWG USE-2/RHW-2 Sun Resist - Qnty. 1
• 2/0 Battery Interconnect Cable 12" Black/Red (UL) Approved Cobra X-Flex - Qnty. 3
• # 4 AWG Cable Per Foot - Qnty. 10 Feet
• EcoCable 10 AWG Solar PV Cable by the Foot - Black - Qnty. 60 Feet

The electrical specifications of the products included in this kit are listed below.

Solar Panels - Quantity 2:

Trina Solar > 330 Watt Mono Solar Panel - BoB

120 Half-Cell Monocrystalline solar panel. 35mm clear frame, Black backsheet.

Mechanical

Electrical

Warranty

• 10 years workmanship
• 25 years linear performance

Detailed Information

High power output

• Reduce BOS cost with high power bin and module efficiency
• New cell string layout and split J-box location reduces the energy loss caused by inter-row shading
• Lower resistance of half-cut cells and increased MBB (Multi Busbar) reflectance ensure higher power

High energy generation, low LCOE

• Excellent 3rd party validated IAM and low light performance with cell process and module material optimization
• Low Pmax temp coefficient (-0.36%) increases energy production
• Better anti-shading performance and lower operating temperature

Outstanding visual appearance, easy to install

• Designed for superior rooftop aesthetics
• Thinner wires give a eye cacthing all black look
• Safe and easy to transport, handle, and install

Certified to perform in highly challenging environments

• High PID resistance through cell process and module material control
• Resistant to salt, acid, sand, and ammonia
• Over 30 in-house tests (UV, TC, HF, etc.)
• Certified to 5400 Pa positive load and 2400 Pa negative load

Documentation

Inverter:

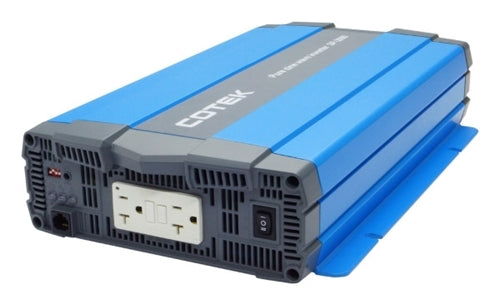

Cotek SP2000 > 2000 Watt 24 VDC Pure Sine Inverter

Off-grid pure sine wave inverter (SP2000-124).

Specifications

Mechanical

Input

Output

Documentation

Battery Bank:
Fullriver 224-6A, 6 Volt 224 Amp Hour AGM Battery

Documentation

Features

• Superior Deep Cycle Design
• High Power Density
• Thick Plates and High-density Active Material

Charge Controller:
MorningStar ProStar MPPT 25 Amp 12/24 Volt MPPT Charge Controller - with Digital Meter

Options: Digital Meter
Manufacturer Part Number: PS-MPPT-25M

Detailed battery programming options allow for advanced battery support for the latest Lithium, Nickel Cadmium, and Lead Acid battery types.

Morningstar has added MPPT to their ProStar line of controllers! This 25M MPPT Charge Controller (PS-MPPT-25M) comes with a Meter Display, and is capable of charging all battery types, including Lithium Ion.This is the first mid-range MPPT controller fully UL and IEC listed, that has integrated lighting and load control. The NEW ProStar MPPT™ is a mid-range MPPT solar charge controller with TrakStar Technology™ that provides maximum power point tracking (MPPT) battery charging for off-grid photovoltaic (PV) systems up to 1100 watts. This device is ideal for industrial and residential applications. An optional Wire Box for the ProStar MPPT controller provides a wiring compartment with knockouts for conduit and cable glands. It provides for a cleaner, safer install.

This version of the controller has the NEW Meter design. It offers:

• Graphic LCD display with large font
• Bright LED backlit display
• Various display status screens
• Easy, intuitive backlit navigation arrow buttons
• Field adjustable and configurable settings for charging, load control, and lighting control

Features

Load & Lighting Control
• Low Voltage Disconnect, Low Voltage Reconnect Settings:
  11.4V/12.6V or custom (x2 for 24 volt systems)
• Lighting Settings: Dusk-dawn or custom

Mechanical
• Dimensions
  Standard: 20 x 17 x 7 cm / 7.9 x 6.7 x 2.8 in
  w/ Wire Box: 20 x 28.5 x 9.2 cm / 7.9 x 11.2 x 3.6 in
• Weight
  Standard: 1.4 kg / 3.1 lbs
  w/ Wire Box: 1.8 kg / 4.0 lbs
• Wire Size Range
  Power terminals: 2.5 - 35 mm2
  / 14 - 2 AWG**
• Battery/Temp. sense: 0.25 - 1.0 mm2 / 24 - 16 AWG
• Knockouts (wiring box option): M20, 1/2”, 1” (trade sizes)
• Enclosure: IP20, Type 1

Electronic Protections
• Automatic recovery without fuses
• Solar Input: overload, short-circuit, high voltage warning, reverse polarity, high temperature, nighttime reverse current
• Load Output: overload, short-circuit, high temperature, reverse polarity
• Battery: reverse polarity (no battery removal)

Battery Charging
• 4-stage charging: Bulk, Absorption, Float, Equalize
• 7 standard battery settings and customization
• Temperature Compensation
  • Coefficient: -5 mV / C /cell (25 C / 77 F ref.)
  • Range: -30 C to +60 C / -22 F to +140 F
  • Setpoints: Absorption, Float, Equalize

Data & Communications
• Communication Port: MeterBus
• Protocols: Morningstar MeterBus, MODBUS
• Datalogging: 256 days, daily records
• PC Software: MSView

Accessories
• Ground Fault Protection Device (GFPD-150)
• Remote Temperature Sensor (RTS)
• Remote Meter (RM-1)
• Wire Box (PS-MPPT-WB)
• PC MeterBus Adapter (MSC)
• USB Communications Adapter (UMC-1)
• Meter Hub (HUB-1)
• Relay Driver (RD-1)

Certifications
• CE; RoHS; ETL Listed (UL1741, UL 62109); cETL (CSA-C22.2 No. 107.1)
• TUV (IEC 62109-1); FCC Part-15 Class B compliant
• Manufactured in a certified ISO 9001 facility
