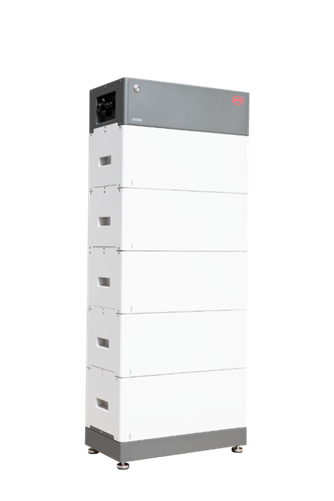

BYD Battery-Box > 28.0 kWh Battery-Box Premium HVL - LFP - 7 Battery Modules
The battery for all applications - in direct High Voltage
Battery-Box Premium HVL
One Battery-Box Premium HVL is composed of 3 to 8 HVL
battery modules that are connected in series to achieve a
usable capacity of 12 to 32 kWh. The ability to scale by adding HVL modules later make the BYD Battery-Box Premium HVL series a top energy storage solution.
|
Model
|
Battery-Box HVL 28.0
|
| Number of Battery Modules |
7
|
|
Series
|
Battery-Box HV
|
|
Manufacturer
|
BYD
|
Mechanical
|
Battery Module
|
HVL (4 kWh, 51.2 V, 99.2 lb)
|
|
Usable Energy [
|
28 kWh
|
|
Max Output Current
|
50 A
|
|
Peak Output Current
|
75 A, 3 s
|
|
Nominal Voltage
|
358.4 V
|
|
Operating Voltage
|
280~403.2 V
|
|
Dimensions (H x W x D)
|
75.9" x 23.0" x 11.7"
|
|
Weight
|
727.5 lbs
|
|
Operating Temperature
|
14 °F to 122 °F
|
|
Battery Cell Technology
|
Lithium Iron Phosphate (cobalt-free)
|
|
Communication
|
CAN/RS485
|
|
Enclosure Protection Rating
|
IP55
|
|
Round-trip Efficiency
|
≥96%
|
|
Certification
|
UL1973 / FCC / UN38.3
|
|
Applications
|
ON Grid / ON Grid + Backup / OFF Grid
|
|
Warranty
|
10 Years
|
|
Compatible Inverters
|
Refer to
BYD Battery-Box Premium HVL Compatible Inverter List
|
|
Shipping Method
|
Freight
|
Detailed Information
The battery for all applications - in direct High Voltage
Features
- Capable of High-Powered Emergency-Backup and Off-Grid Functionality
- Highest Efficiency Thanks to a Real High-Voltage Series Connection
- The Patented Modular Plug Design Requires no Internal Wiring and Allows for Maximum Flexibility and Ease of Use
- Cobalt Free Lithium Iron Phosphate (LFP) Battery: Maximum Safety,
Life Cycle, and Power
- Compatible with Leading High Voltage Battery Inverters
- Highest Safety Standards
