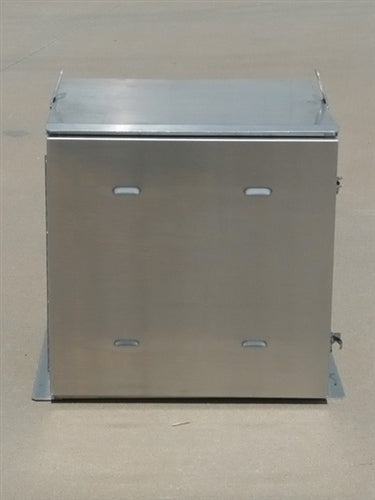

8G8D-2X2-MA > Solar Battery Box (Accommodates 4 Batteries)

Ameresco Solar supplies and distributes a complete line of enclosures to accommodate a wide range of off-grid applications. We have a large selection of enclosures and control cabinets ranging from single battery pole, ROHN tower and wall mounted, to custom multi-battery enclosures. Our enclosure line has the flexibility to meet your storage needs.

Our 8G8D-2X2-MA Features Include:

• UL 508A, NEMA 3R (standard)
• NEMA 3R, NEMA 4, NEMA 4X

• Aluminum
• Stainless Steel (304 or 316)


• 79 lbs


• 4 - BCI Group 8G8D
• 4 - BCI Group 8G4D

Overall Dims (HxWxD - IN): 31.25 x 31.5 x 27.0
Inside Dims (HxWxD - IN): 28.0 x 27.5 x 24.75
Opening Dims (HxWxD - IN): 23.5 x 24.875

Available Options

• Breather-drain (ECD15) for NEMA4/4X (Required for all battery applications)
• Heat strips (120V 150W with thermostat)
• Interior insulation (Low E)
• Sun shields - available for top, sides, and door
• Key lock (#1 or #2 Pelco)
